BUILT FOR HEAVY LOADS. ENGINEERED FOR TOUGH JOBS.

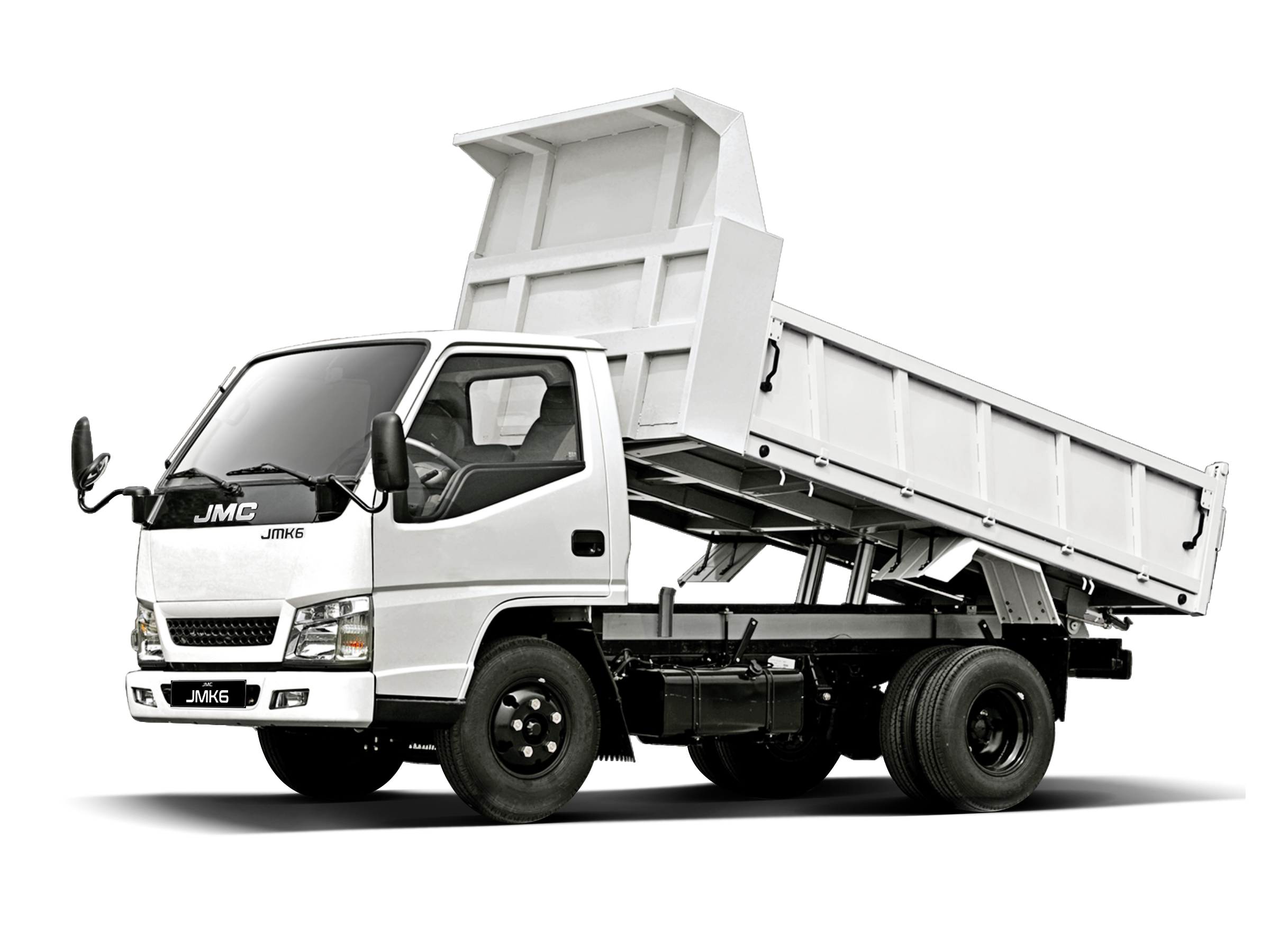

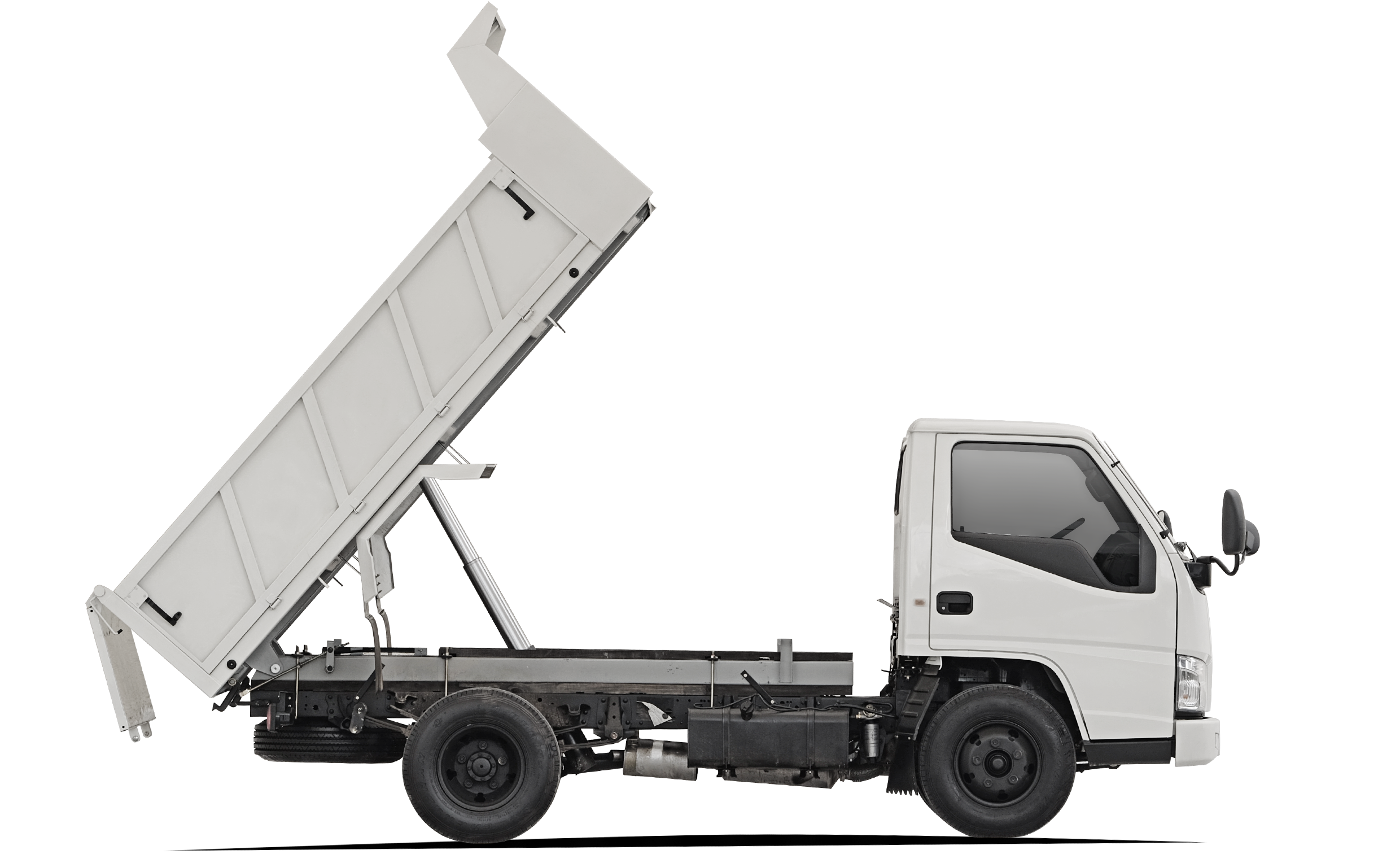

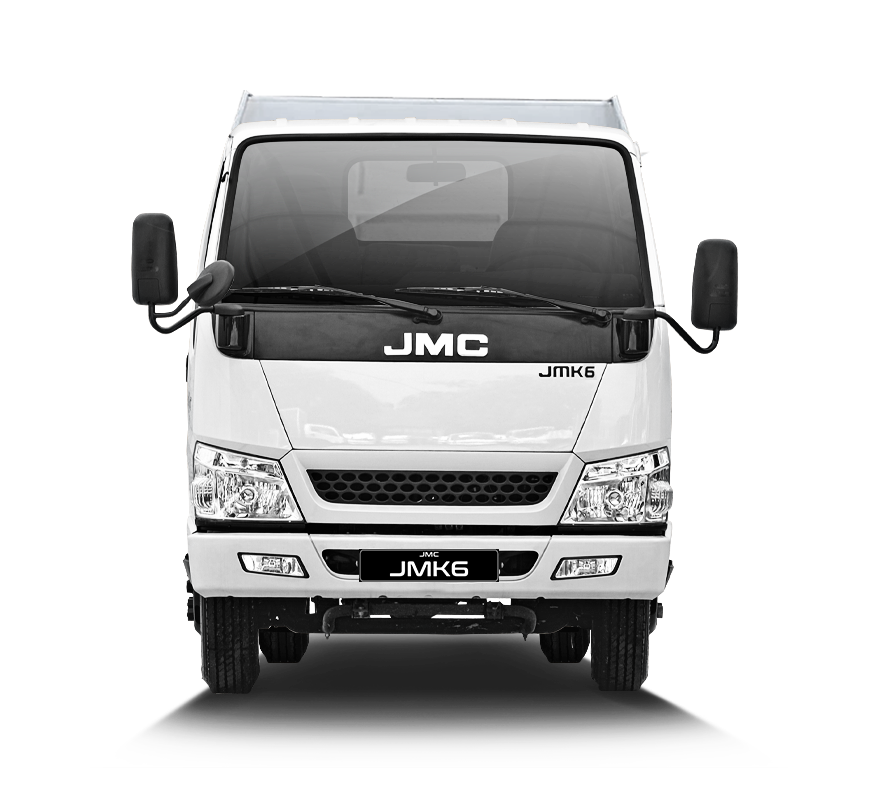

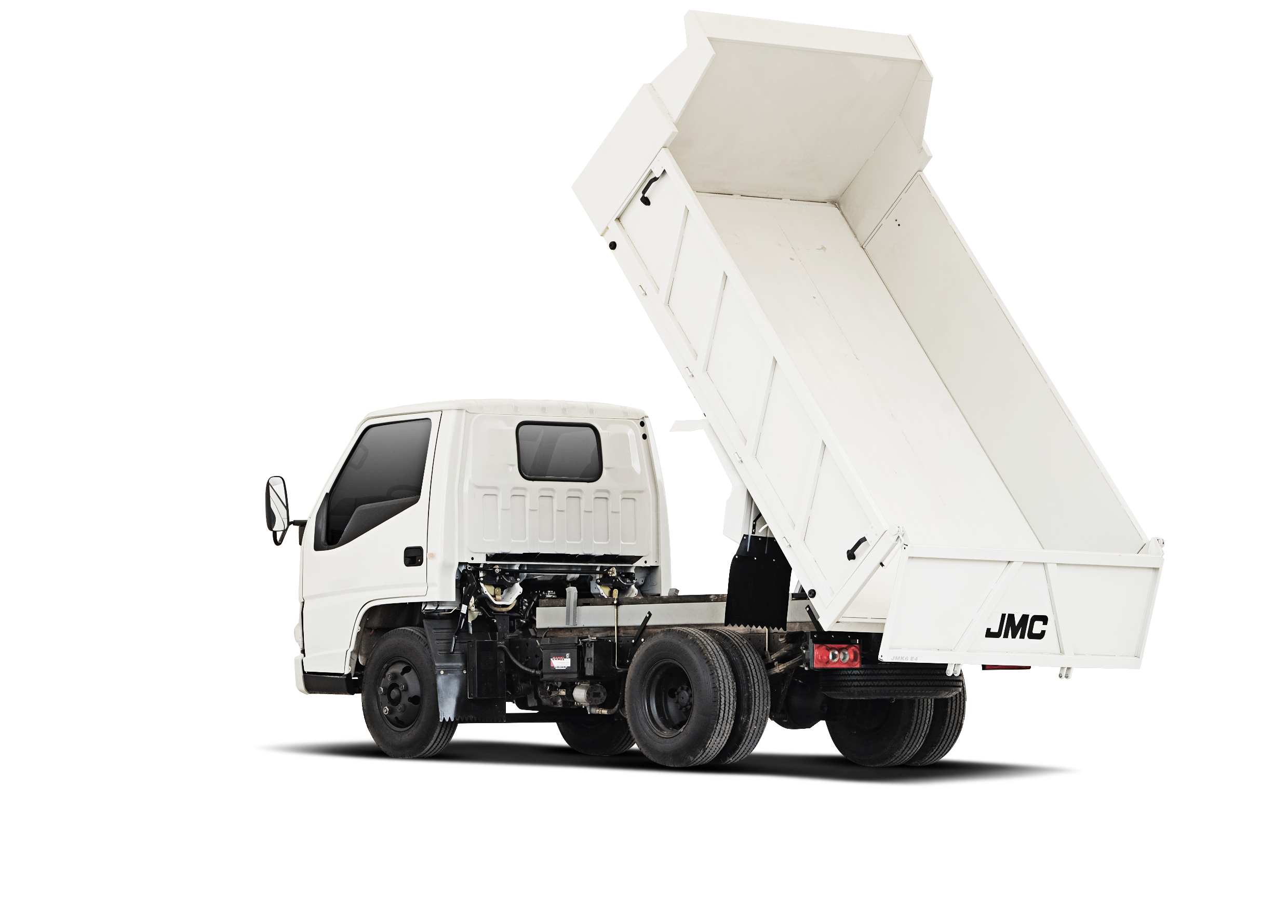

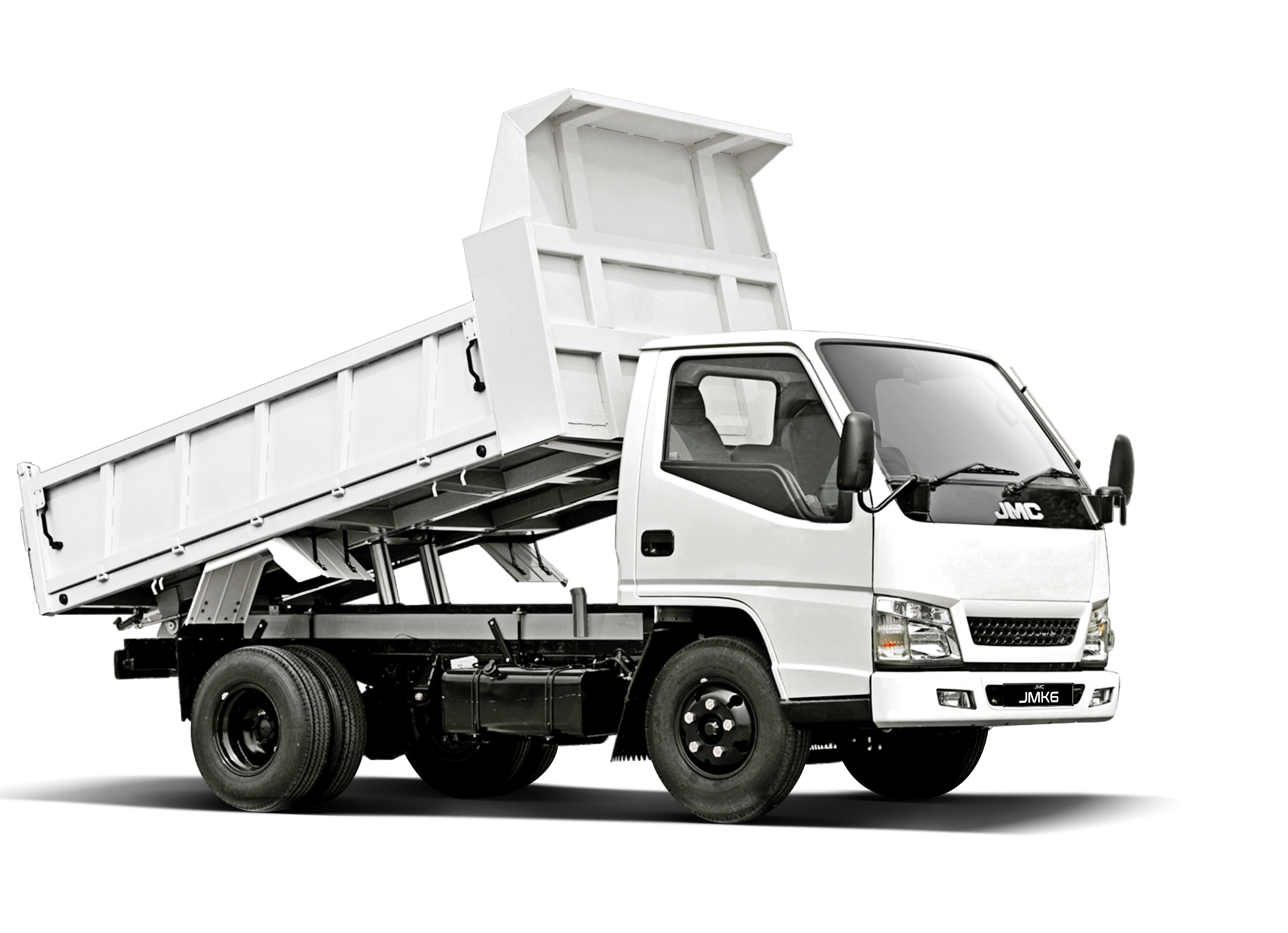

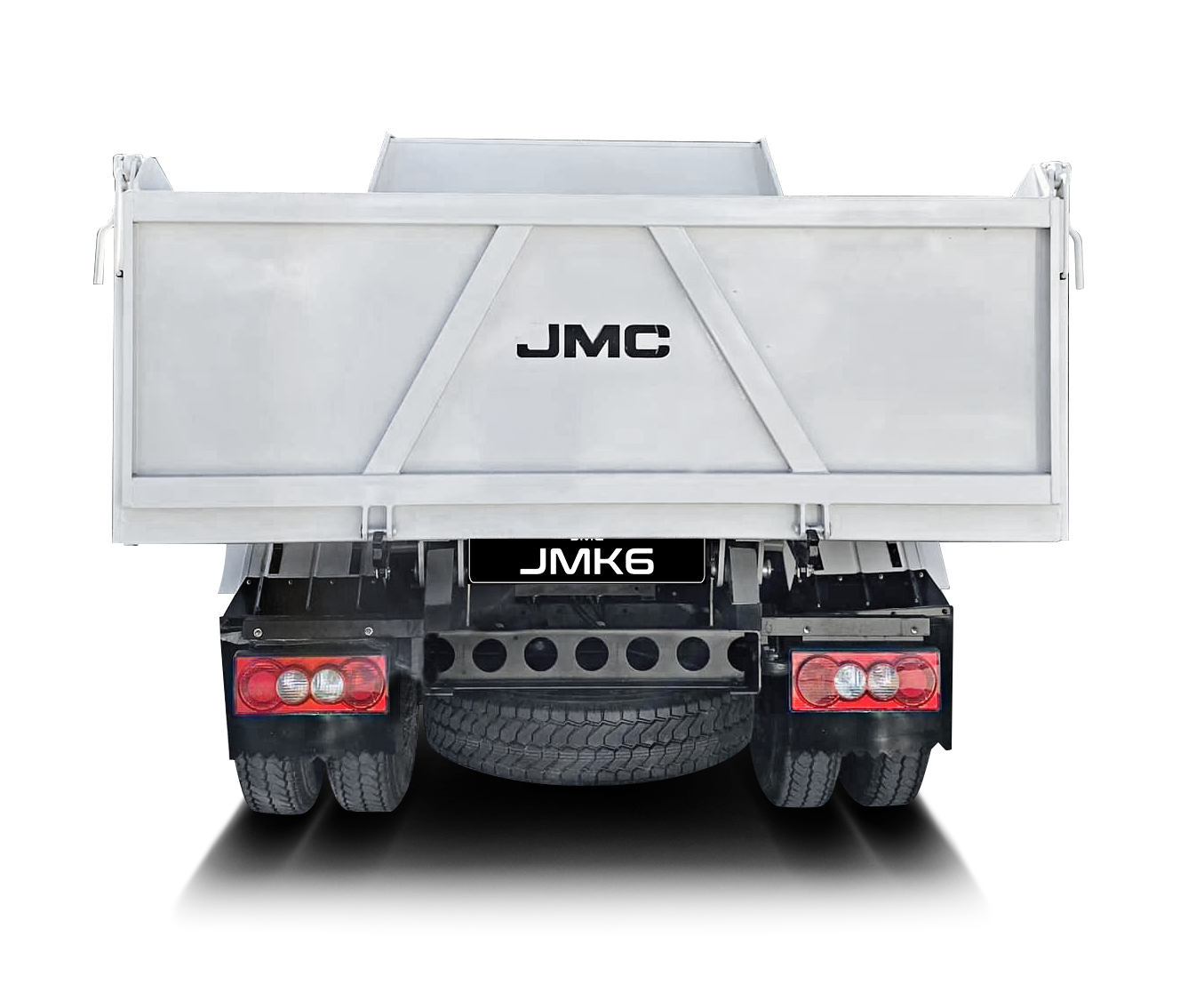

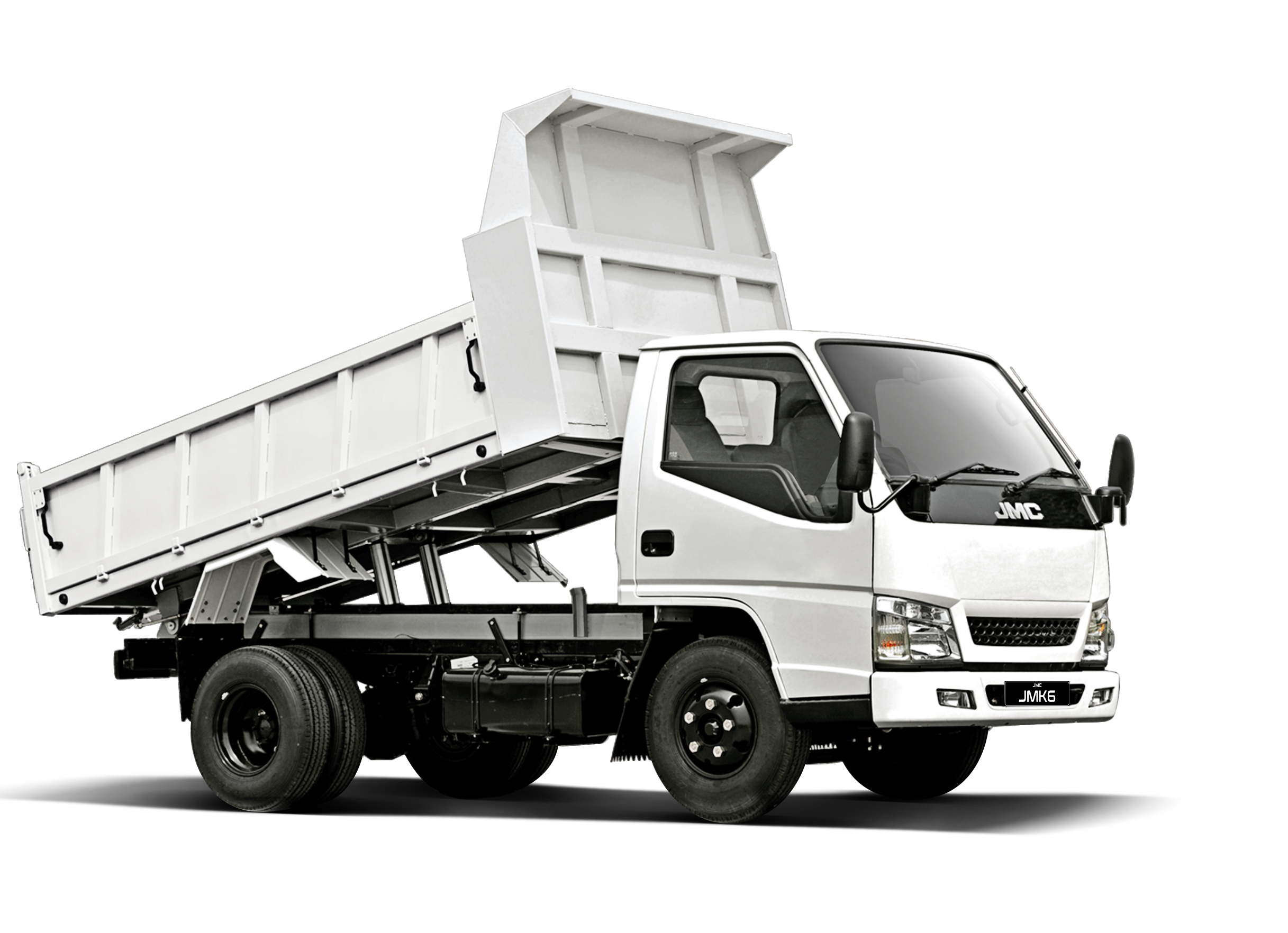

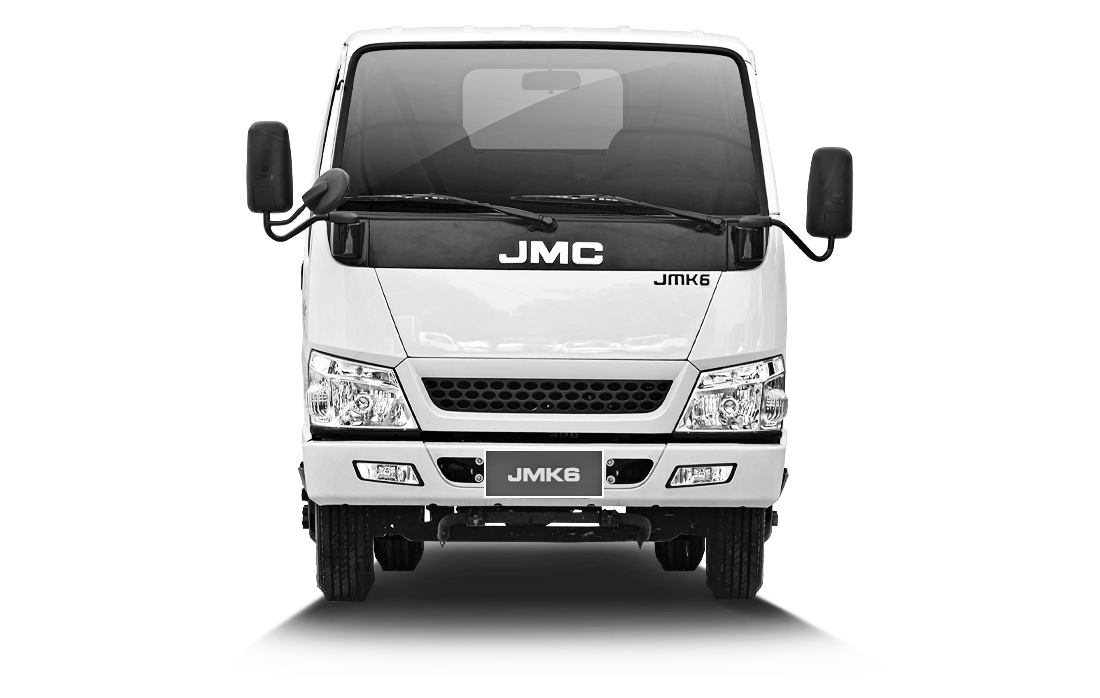

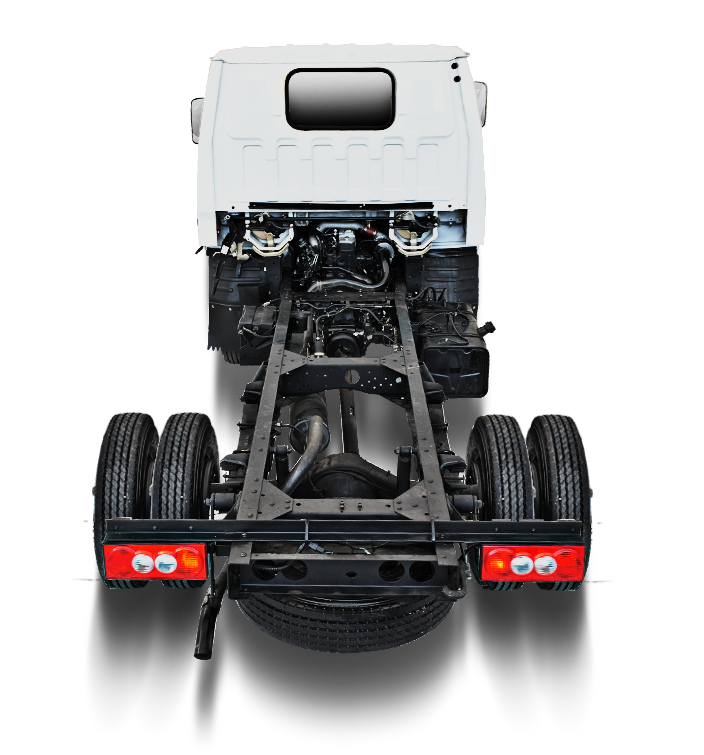

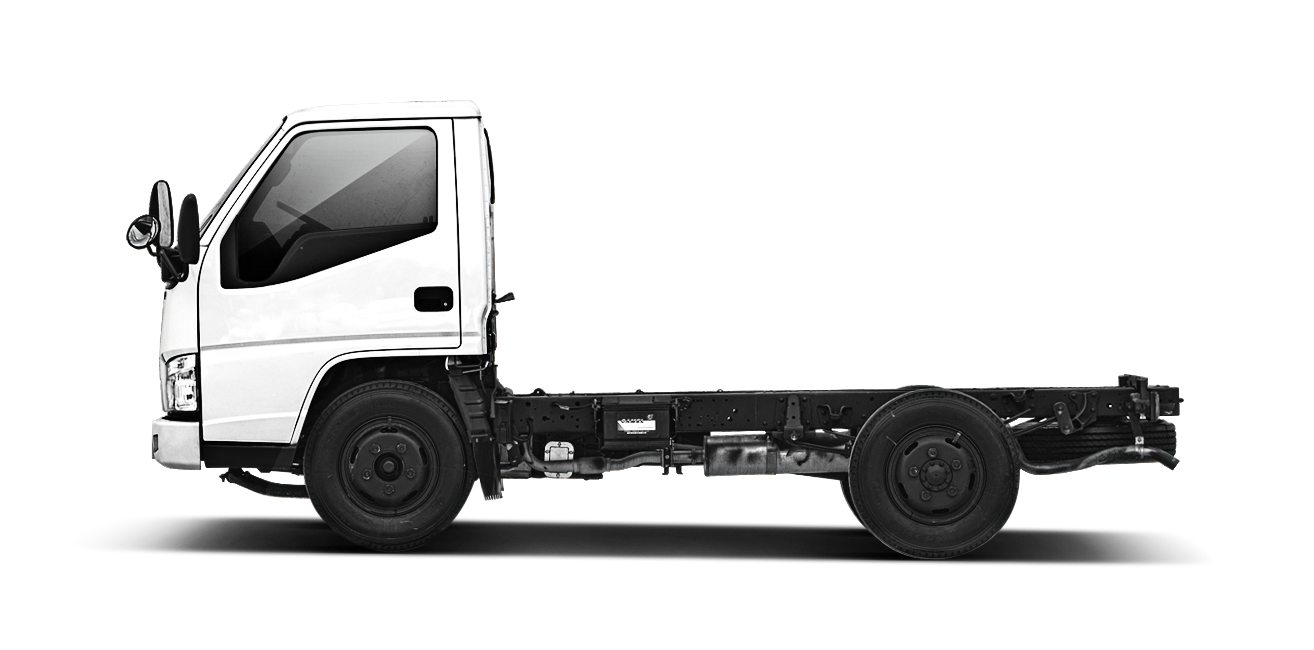

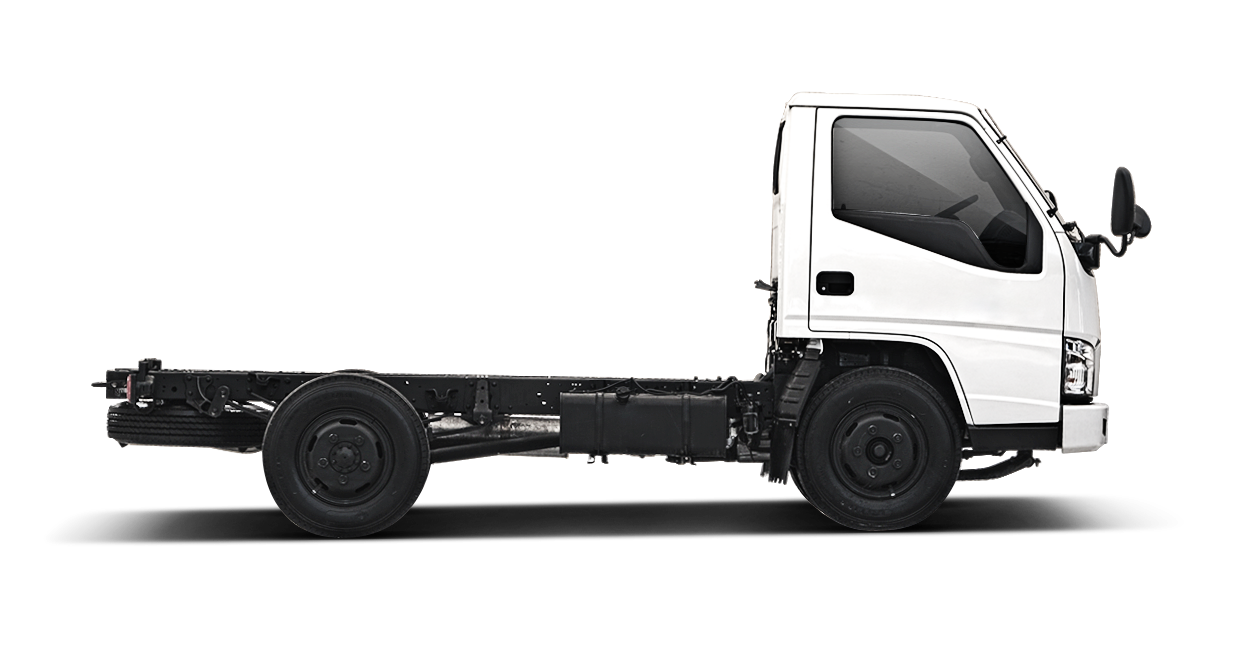

The JMC JMK6 Dump Truck is designed to deliver reliable performance in construction, mining, infrastructure, and material hauling operations. Built with a durable chassis and heavy-duty dump body, it provides the strength and efficiency needed to transport aggregates, soil, gravel, and construction materials across demanding job sites.
Combining rugged durability with practical functionality, the JMK6 helps businesses maximize productivity while minimizing downtime. Whether you’re supporting large-scale construction projects or daily hauling operations, the JMC JMK6 is a dependable workhorse built to handle tough environments and keep your operations moving forward.
|
MECHANICAL FEATURES
|
|
|---|---|
|
Engine Model
|
JX493ZLQ4
|
|
Engine Type
|
4-cylinder, Turbo-Intercooler, CRDI, Diesel engine
|
|
Displacement
|
2771
|
|
Max Torque (Nm/rpm)
|
260/2000
|
|
Max Power [Kw(Hp)/rpm]
|
81(108)/3400
|
|
Emission Level
|
Euro IV
|
|
Fuel Tank Capacity (L)
|
63
|
|
Transmission
|
5-Speed Manual
|
|
DIMENSION & WEIGHT
|
|
|---|---|
|
Gross Vehicle Weight (kg)
|
5010
|
|
Payload (kg)
|
3000
|
|
Overall Dimension (LxWxH) (mm)
|
4800 X 1880 X 2100
|
|
Cargo Length (ft)
|
10.5
|
|
Wheelbase (mm)
|
2490
|
|
OTHER FEATURES
|
|
|---|---|
|
Tilting Cabin
|
Standard
|
|
Seat Capacity
|
3
|
|
Air Conditioning
|
Optional
|
|
Windows
|
Manual
|
|
Central Locking
|
Manual
|
|
Audio System
|
Radio, USB & SD Card
|
|
Brakes [Service / Parking]
|
Hydraulic with ABS/ Mechanical
|
|
Suspension [Front & Rear]
|
Leaf Spring and Shock Absorber
|
|
Alternator
|
12V 80A
|
|
Tire Size
|
7.00 R16
|
|
Number of Tires
|
6 + 1 Spare
|
|
Number of Studs
|
5
|
|
MECHANICAL FEATURES
|
|
|---|---|
|
Engine Model
|
JX493ZLQ4
|
|
Engine Type
|
4-cylinder, Turbo-Intercooler, CRDI, Diesel engine
|
|
Displacement
|
2771
|
|
Max Torque (Nm/rpm)
|
260/2000
|
|
Max Power [Kw(Hp)/rpm]
|
81(108)/3400
|
|
Emission Level
|
Euro IV
|
|
Fuel Tank Capacity (L)
|
63
|
|
Transmission
|
5-Speed Manual
|
|
DIMENSION & WEIGHT
|
|
|---|---|
|
Gross Vehicle Weight (kg)
|
5010
|
|
Payload (kg)
|
3000
|
|
Overall Dimension (LxWxH) (mm)
|
4800 X 1880 X 2100
|
|
Cargo Length (ft)
|
10.5
|
|
Wheelbase (mm)
|
2490
|
|
OTHER FEATURES
|
|
|---|---|
|
Tilting Cabin
|
Standard
|
|
Seat Capacity
|
3
|
|
Air Conditioning
|
Optional
|
|
Windows
|
Manual
|
|
Central Locking
|
Manual
|
|
Audio System
|
Radio, USB & SD Card
|
|
Brakes [Service / Parking]
|
Hydraulic with ABS/ Mechanical
|
|
Suspension [Front & Rear]
|
Leaf Spring and Shock Absorber
|
|
Alternator
|
12V 80A
|
|
Tire Size
|
7.00 R16
|
|
Number of Tires
|
6 + 1 Spare
|
|
Number of Studs
|
5
|
