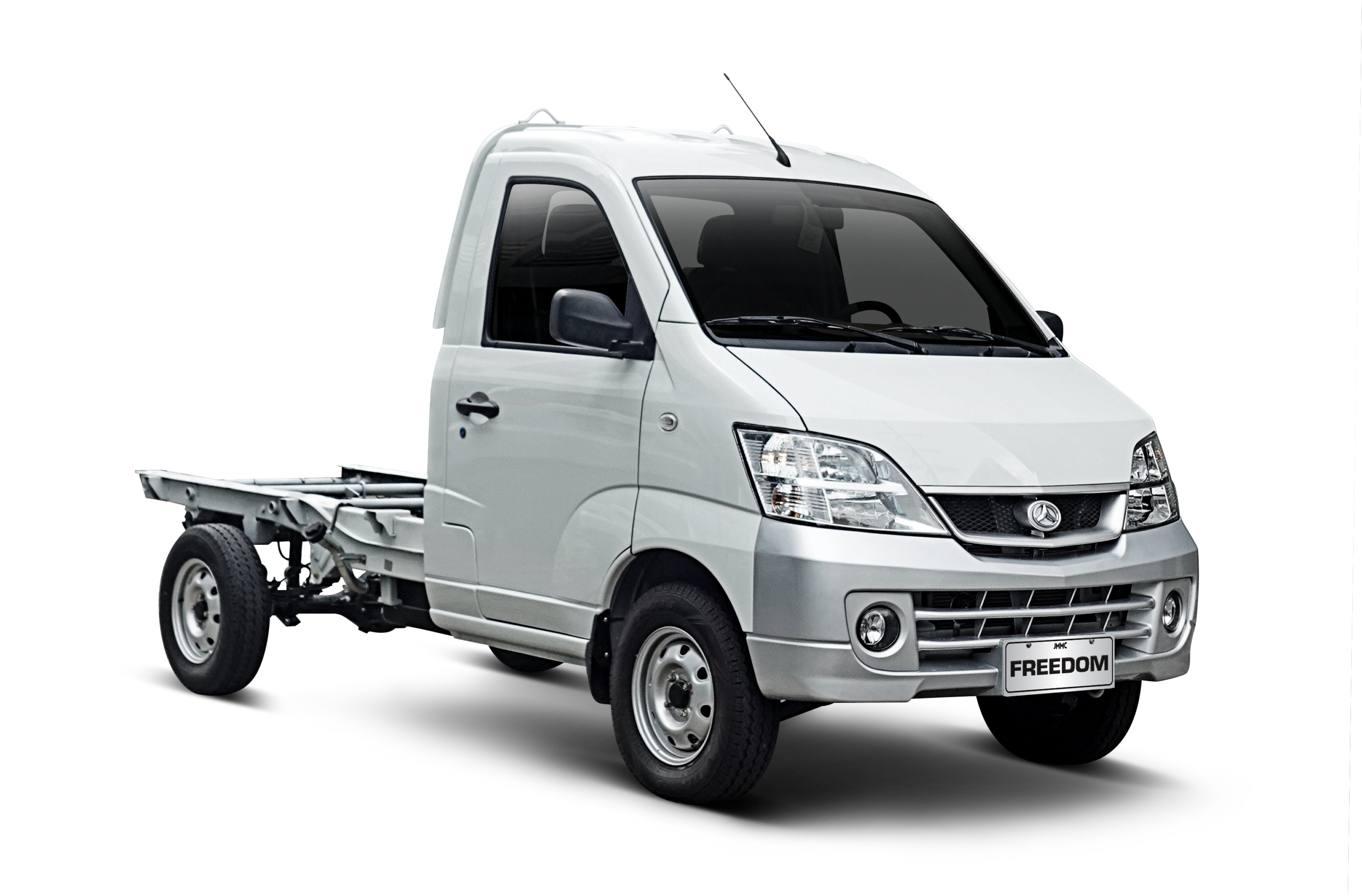

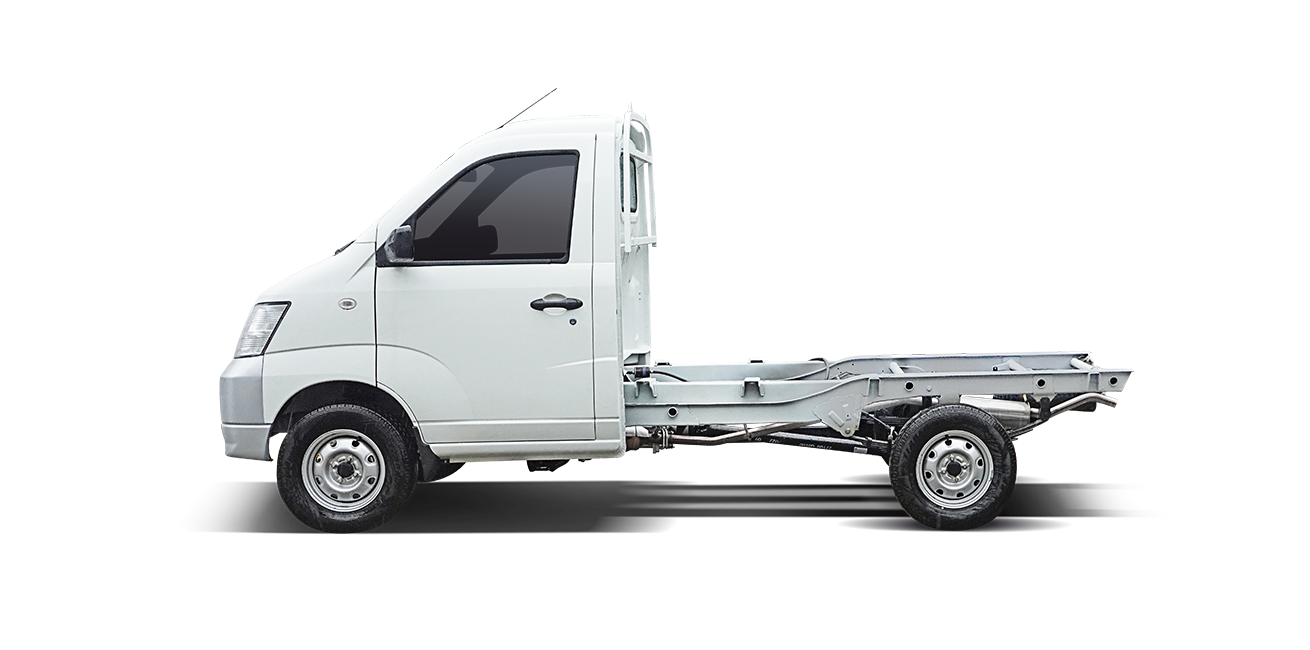

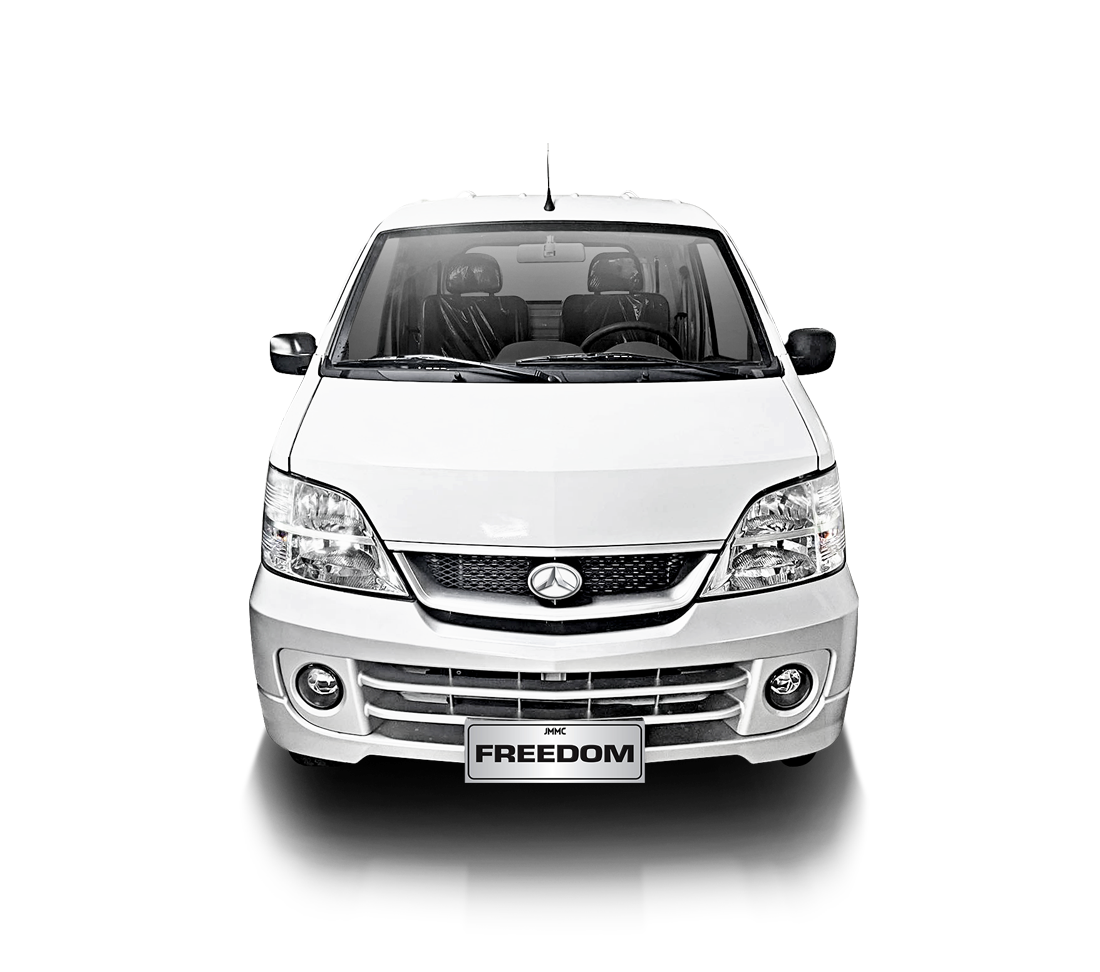

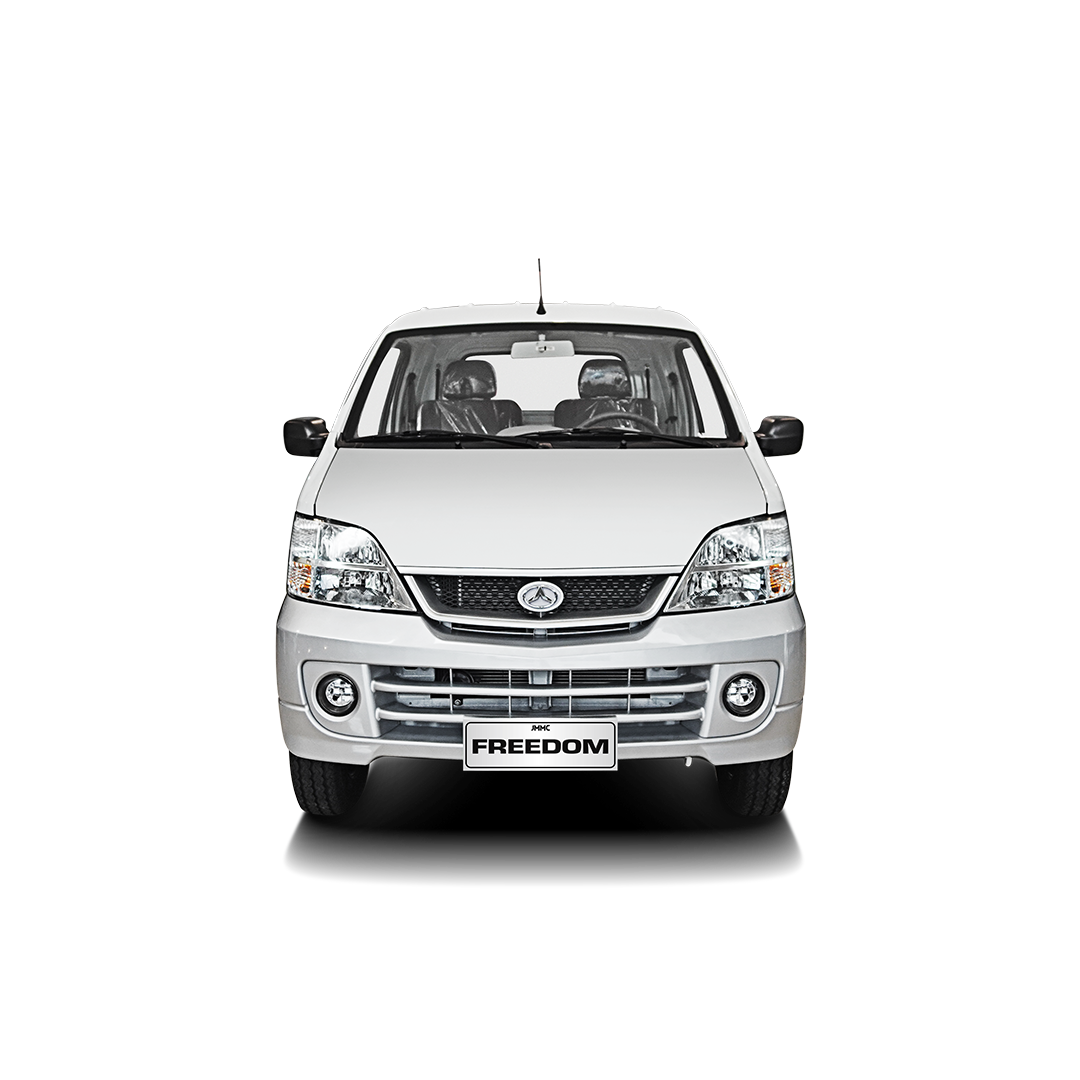

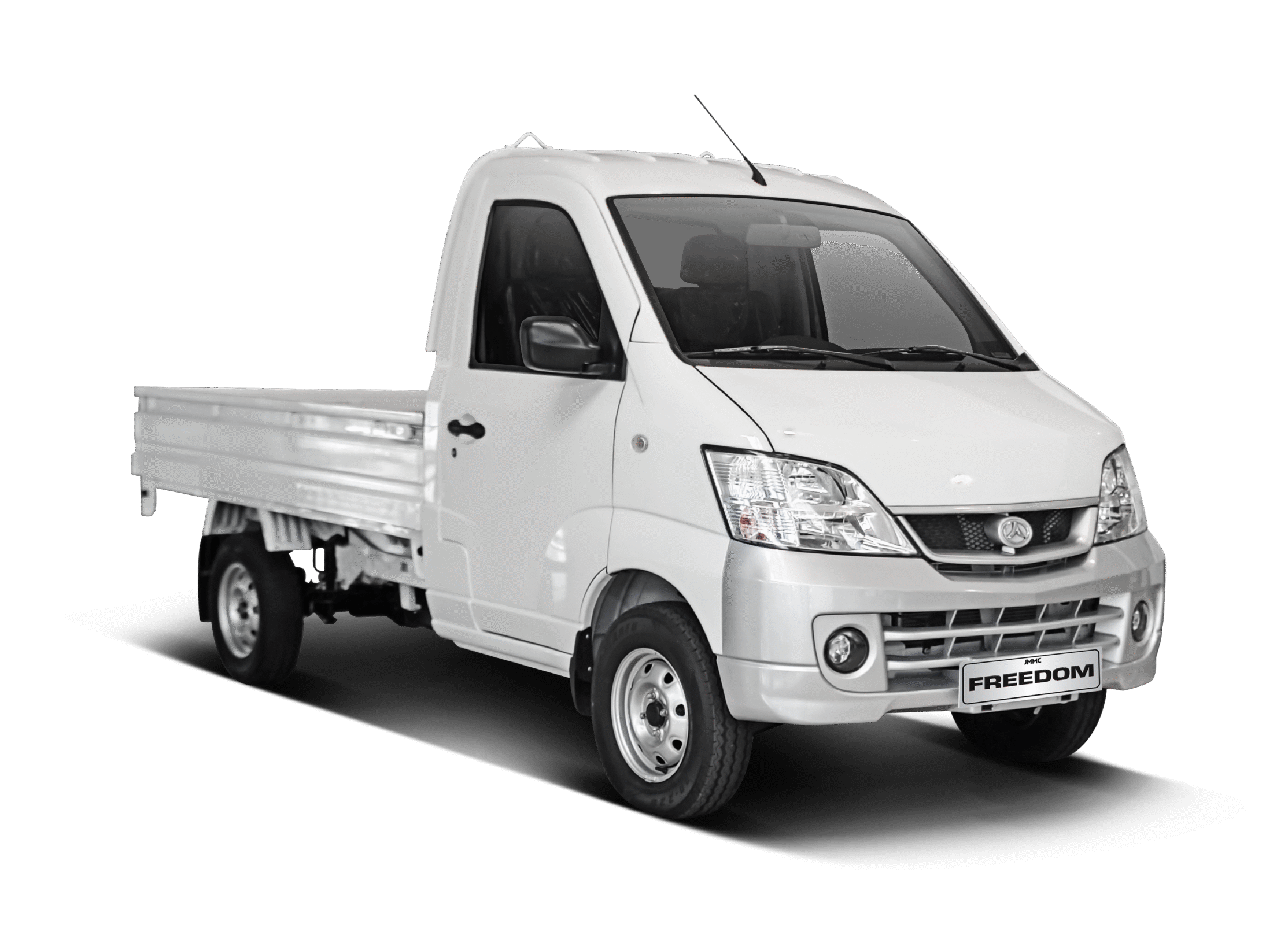

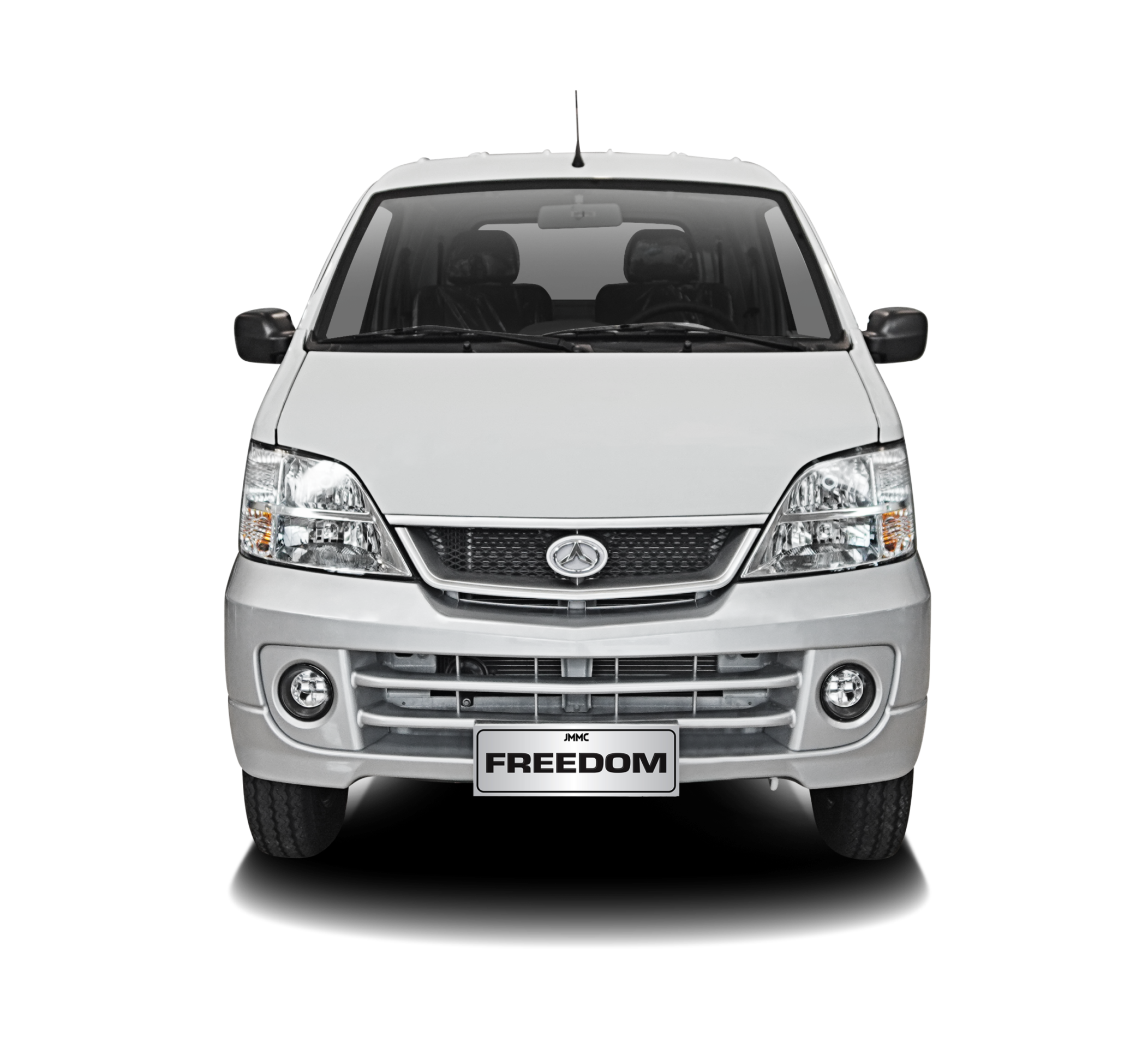

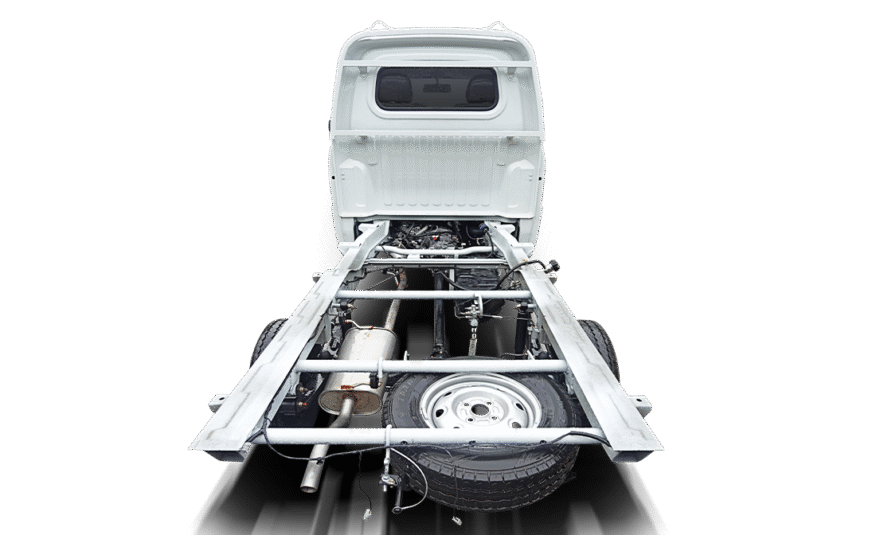

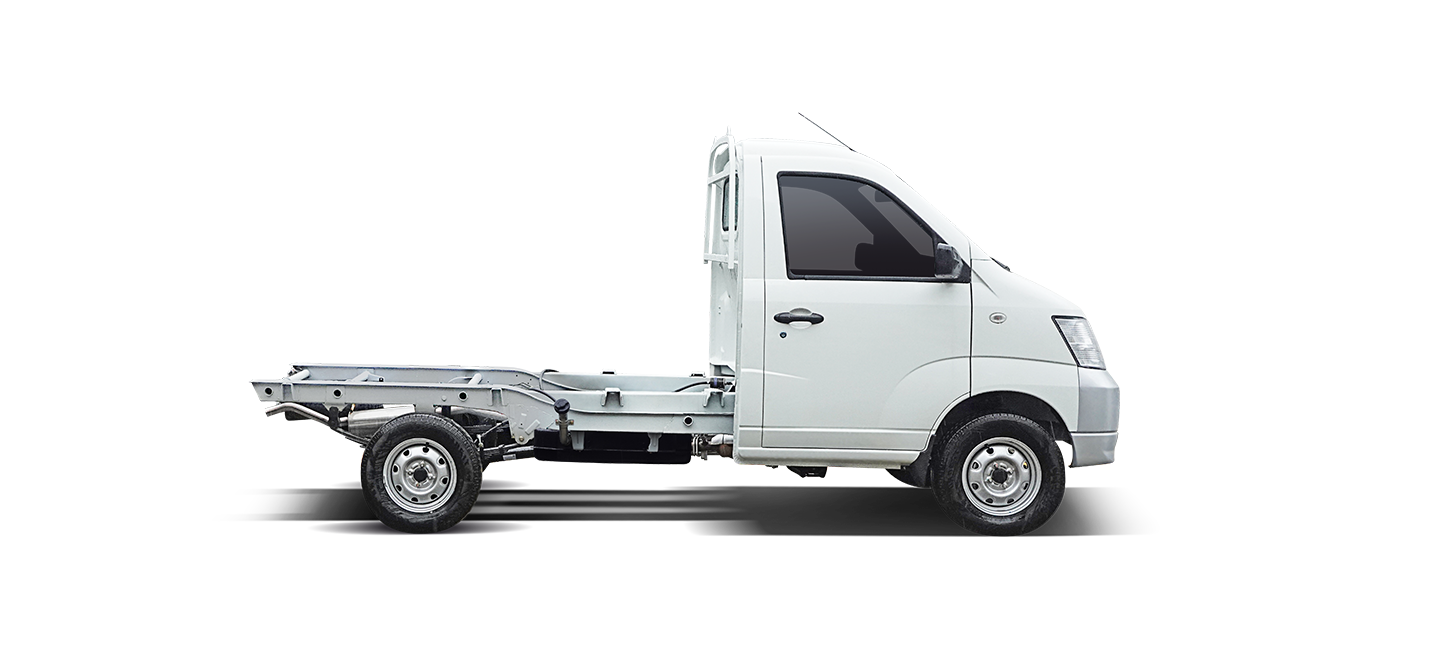

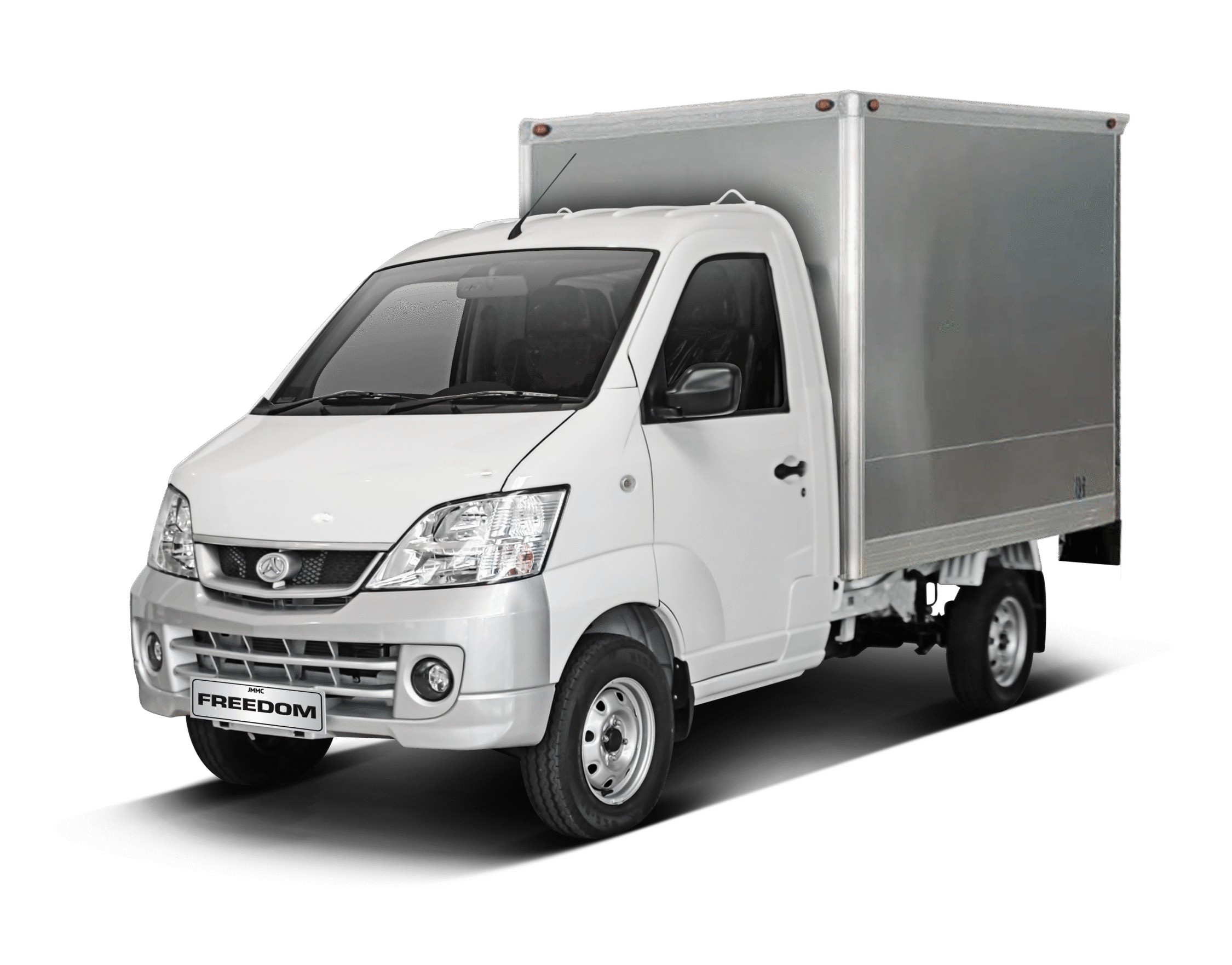

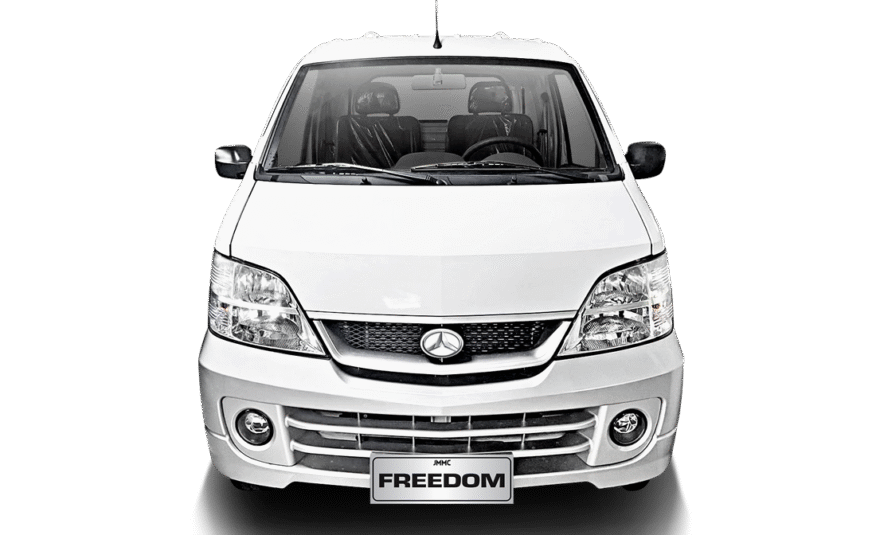

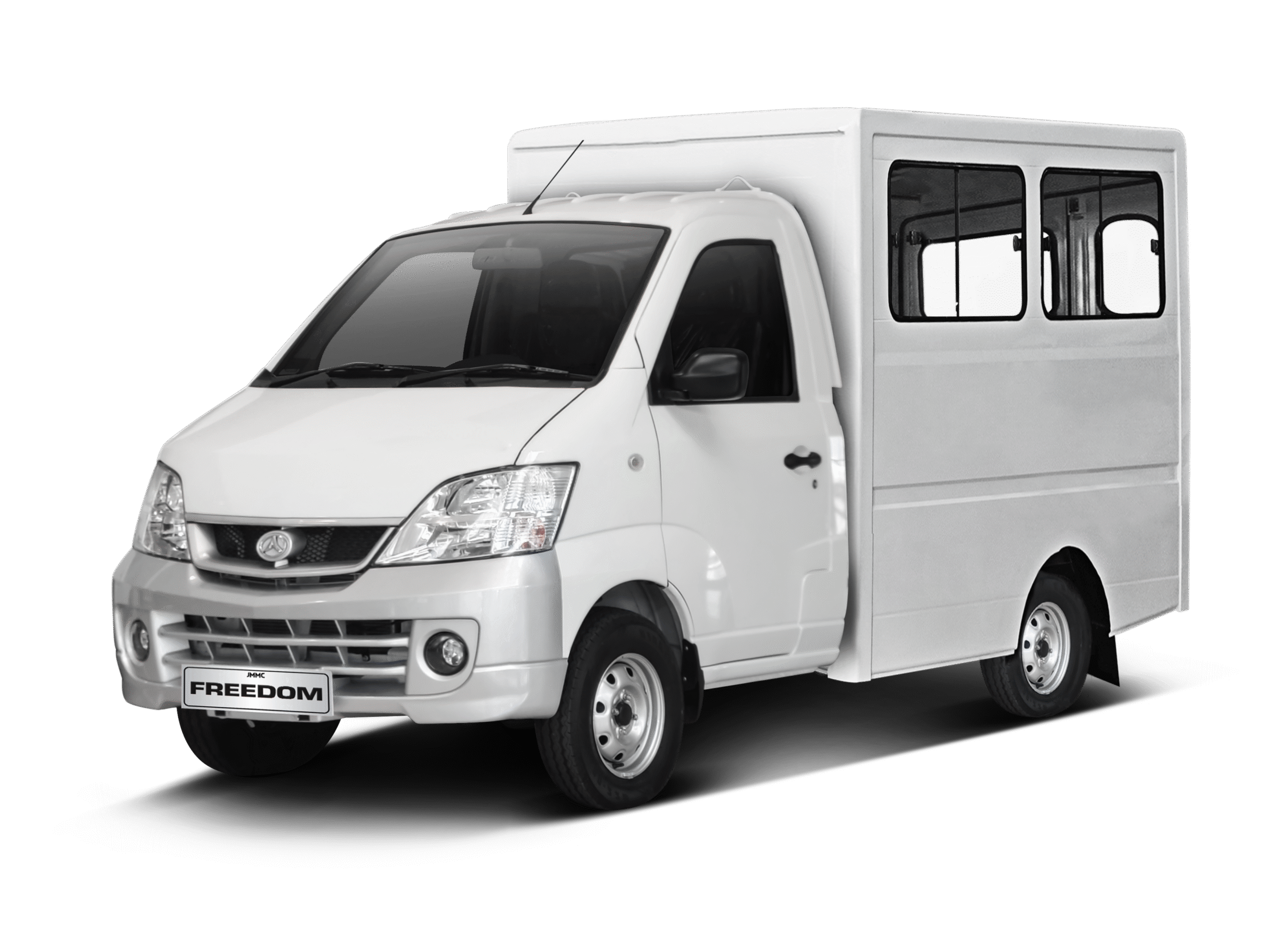

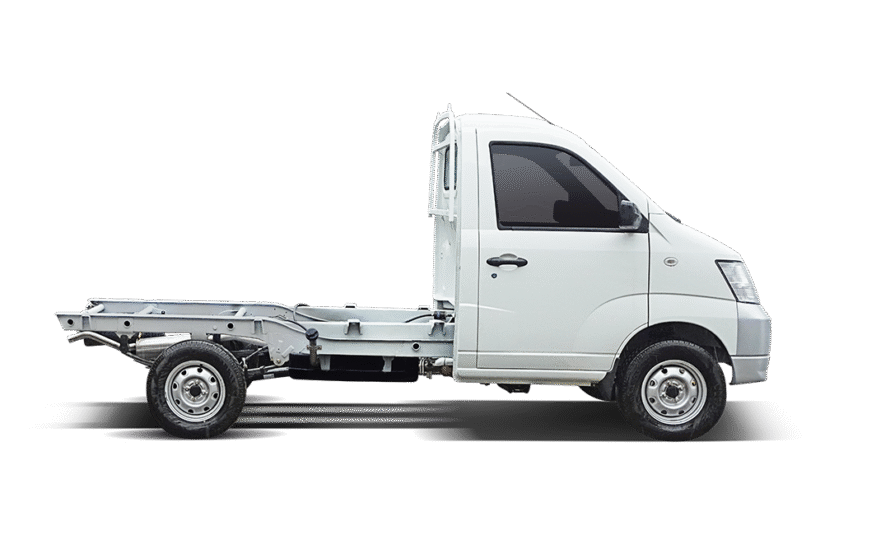

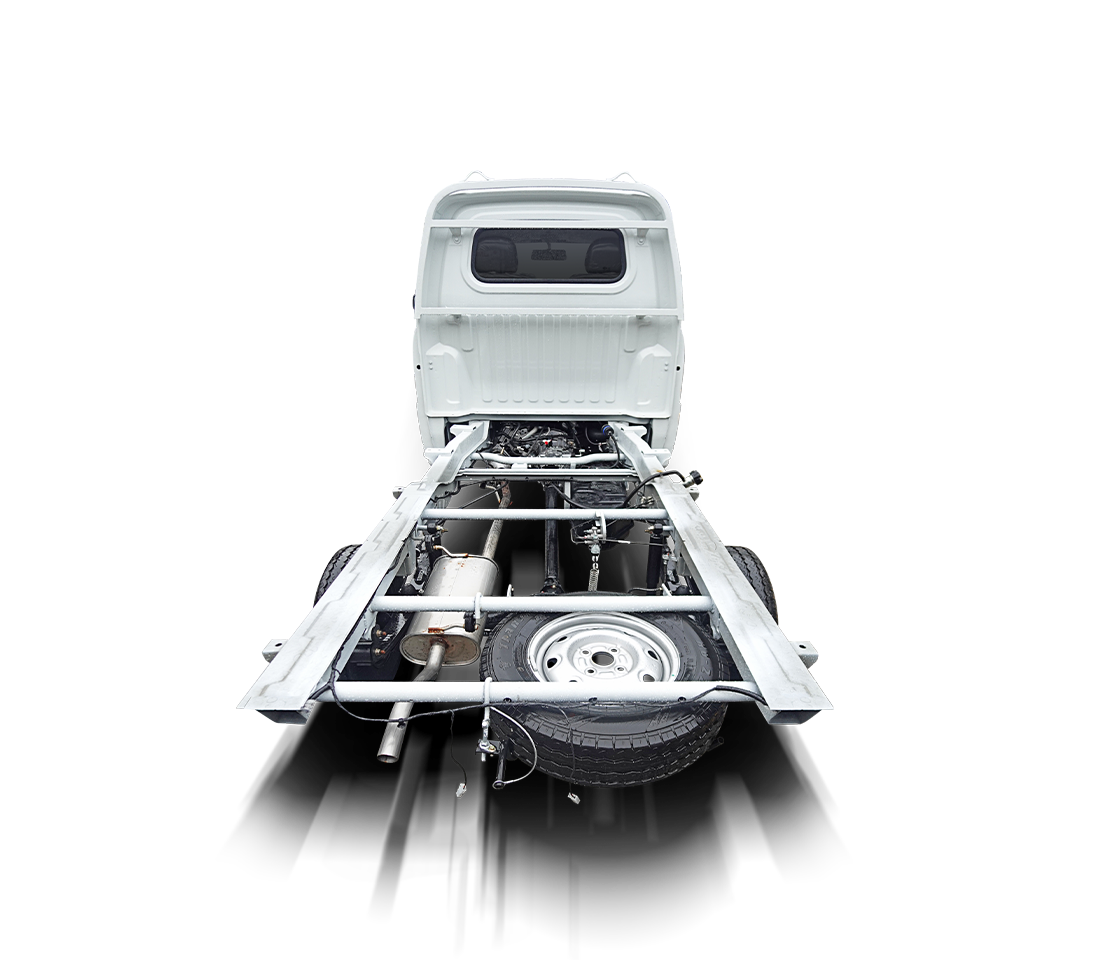

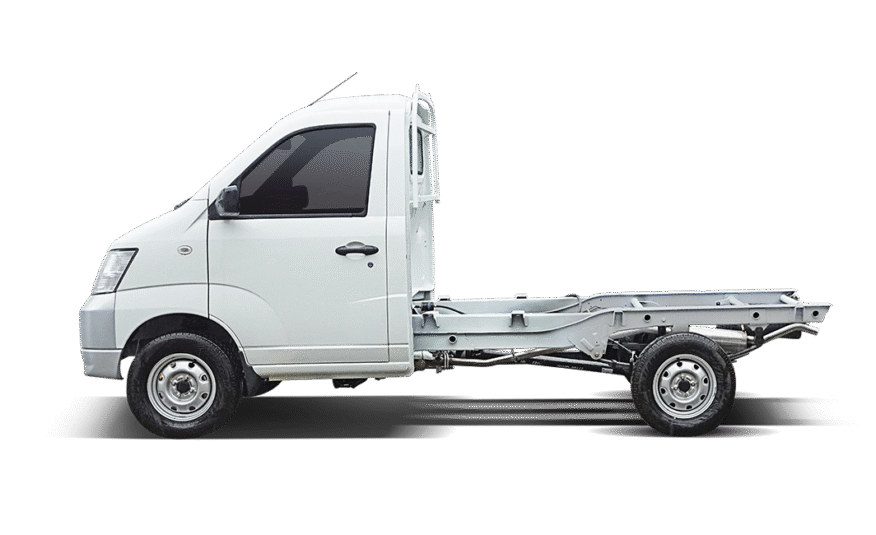

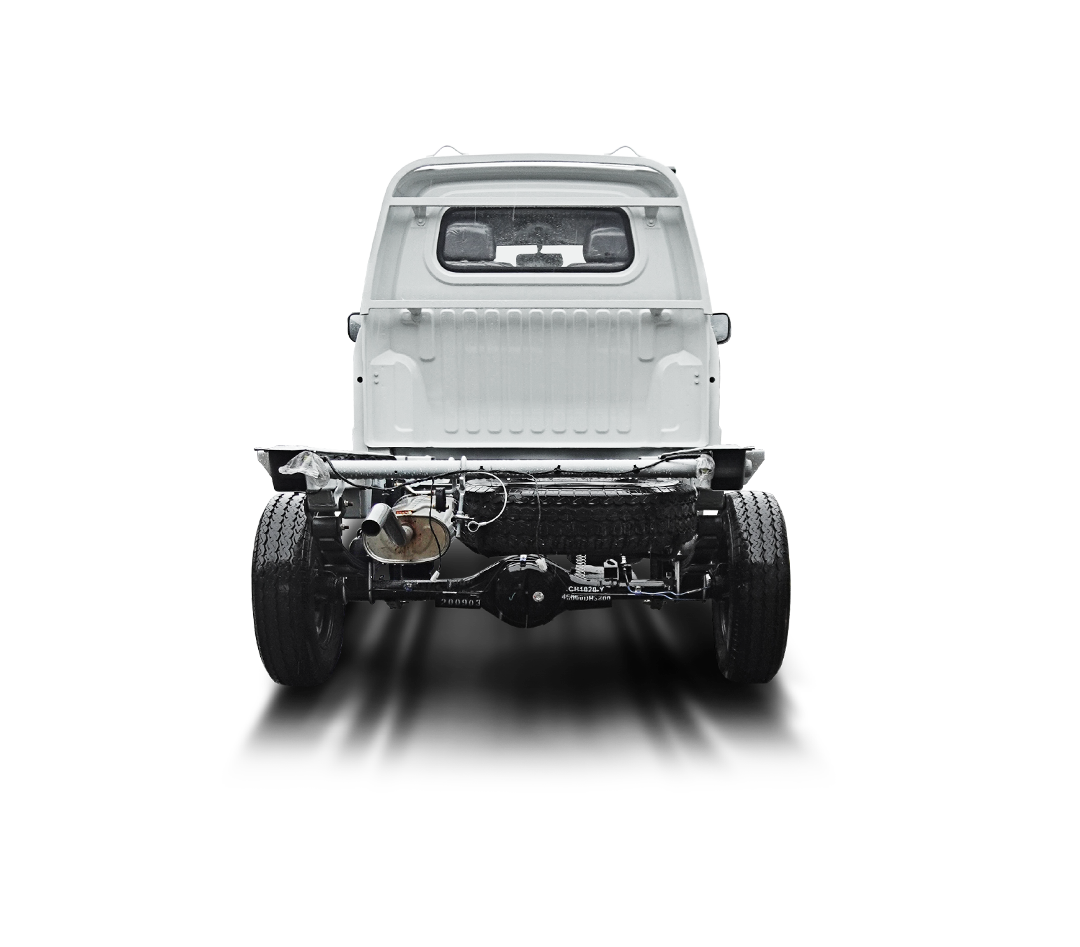

The JMMC Freedom is a versatile light-duty vehicle available in Dropside and FB Body configurations, built on a durable cab-and-chassis platform. It is powered by a 1.4-liter K14B-A gasoline engine that delivers 95 hp / 6000 Rpm and 115 Nm of torque / 3200 rpm, paired with a 5-speed manual transmission. With a gross vehicle weight of 1920 kg and a payload capacity of 990 kg. The JMMC Freedom features ventilated front disc brakes, rear drum brakes, MacPherson strut suspension up front and leaf springs at the rear, plus 165 R13 LT tires. It seats two, includes available air conditioning and automatic windows, and comes with a radio and USB-equipped audio system.
|
MECHANICAL FEATURES
|
|
|
|---|---|---|
|

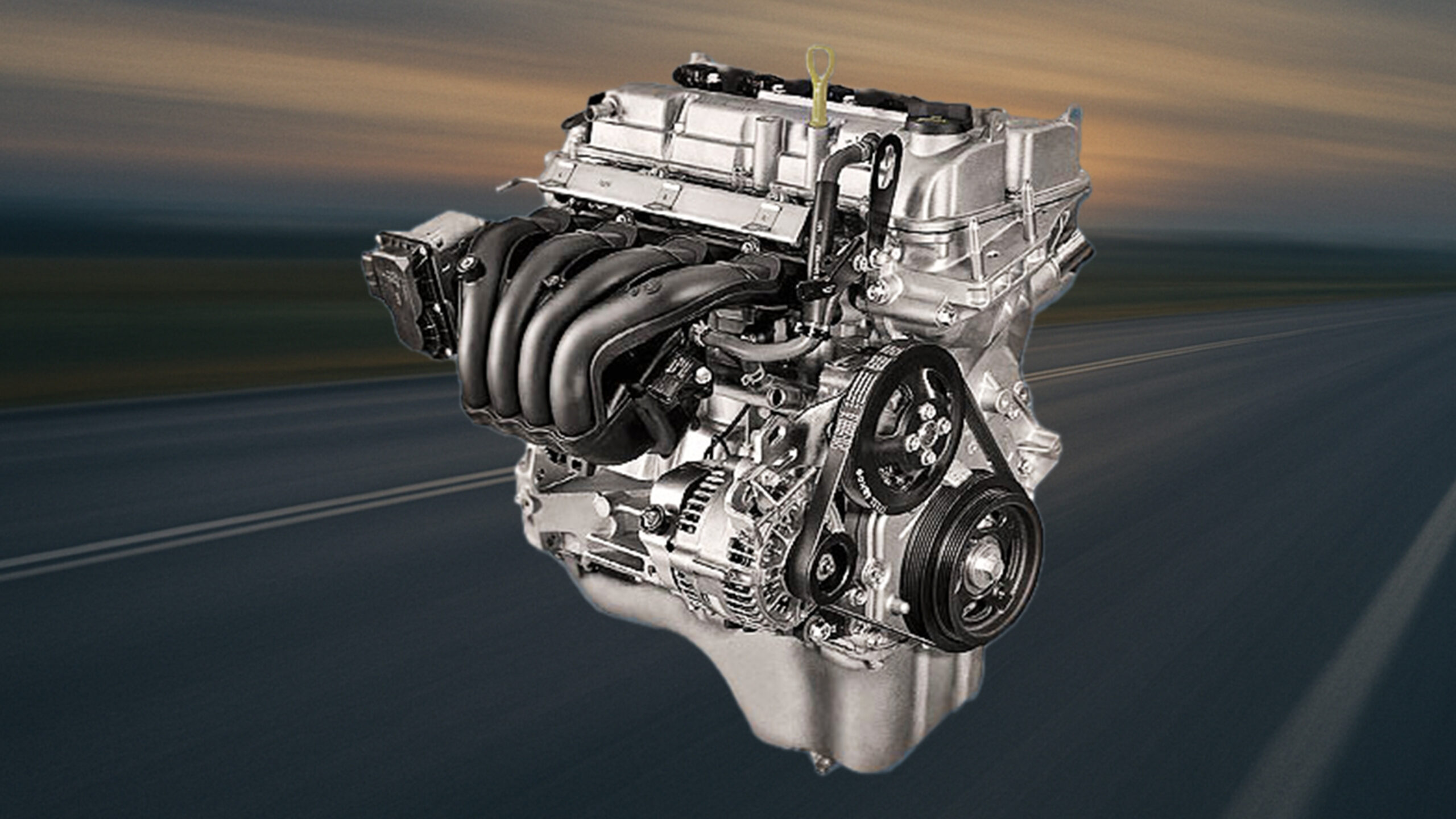

Engine Model
|
K14B-A
|
|
|
Engine Type
|
Gasoline
|
|
|
Displacement (cc)
|
1372
|
|
|
Max Torque (Nm/rpm)
|
115/3200
|
|
|
Max Power [Kw(Hp)/rpm]
|
70(95)/6000
|
|
|
Emission Level
|
N / A
|
|
|
Fuel Tank Capacity (L)
|
37
|
|
|

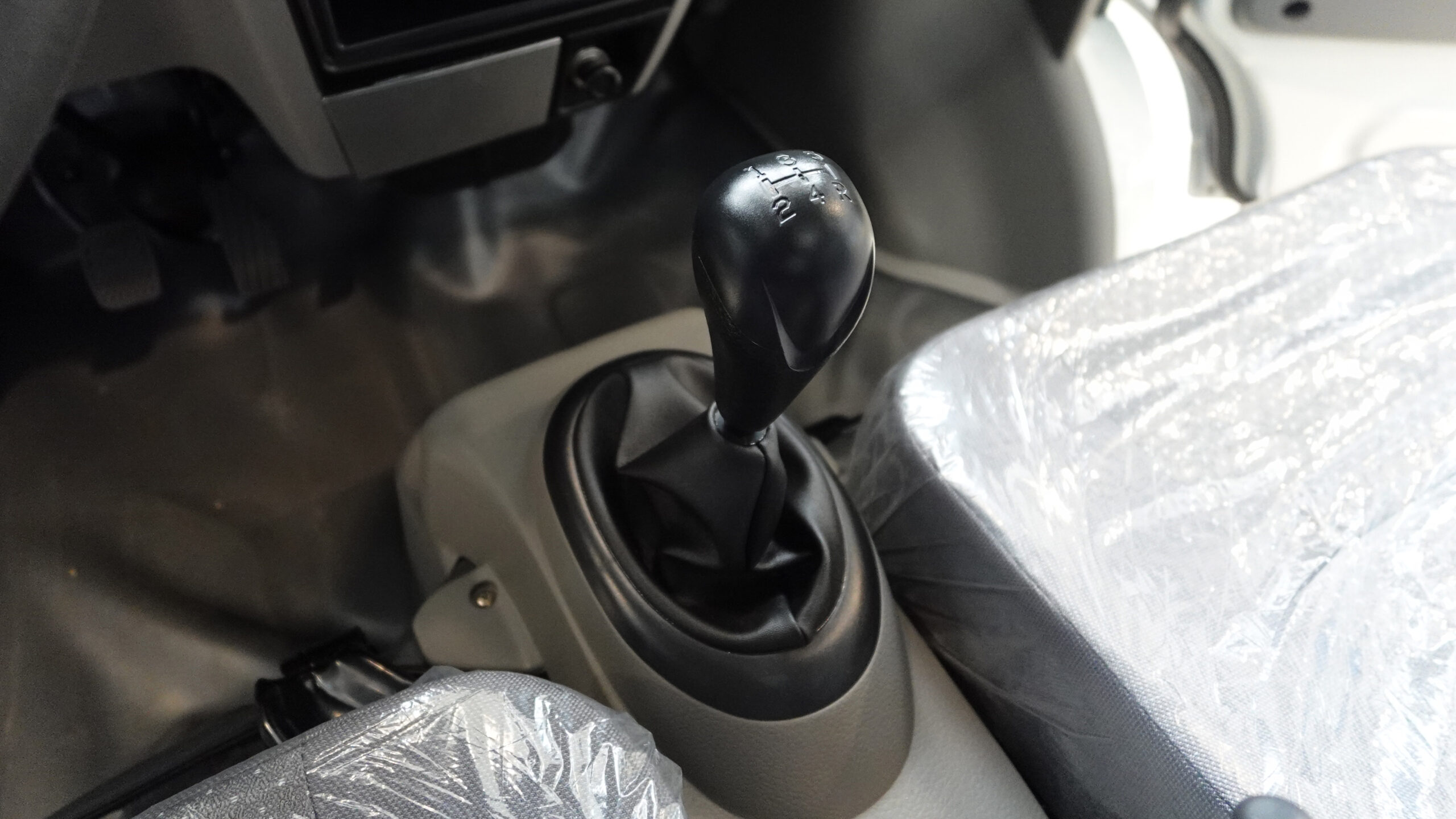

Transmission
|
5-Speed Manual
|
|
|
DIMENSION & WEIGHT
|
|
|
|---|---|---|
|
Gross Vehicle Weight (kg)
|
1920
|
|
|
Payload (kg)
|
990
|
|
|
Overall Dimensions
(LxWxH) (mm)
|
4400 x 1528 x 1832
|
|
|
Cargo Length (ft)
|
8
|
|
|
Wheelbase (mm)
|
2740
|
|
|
OTHER FEATURES
|
|
|
|---|---|---|
|
Tilting Cabin
|
N / A
|
|
|

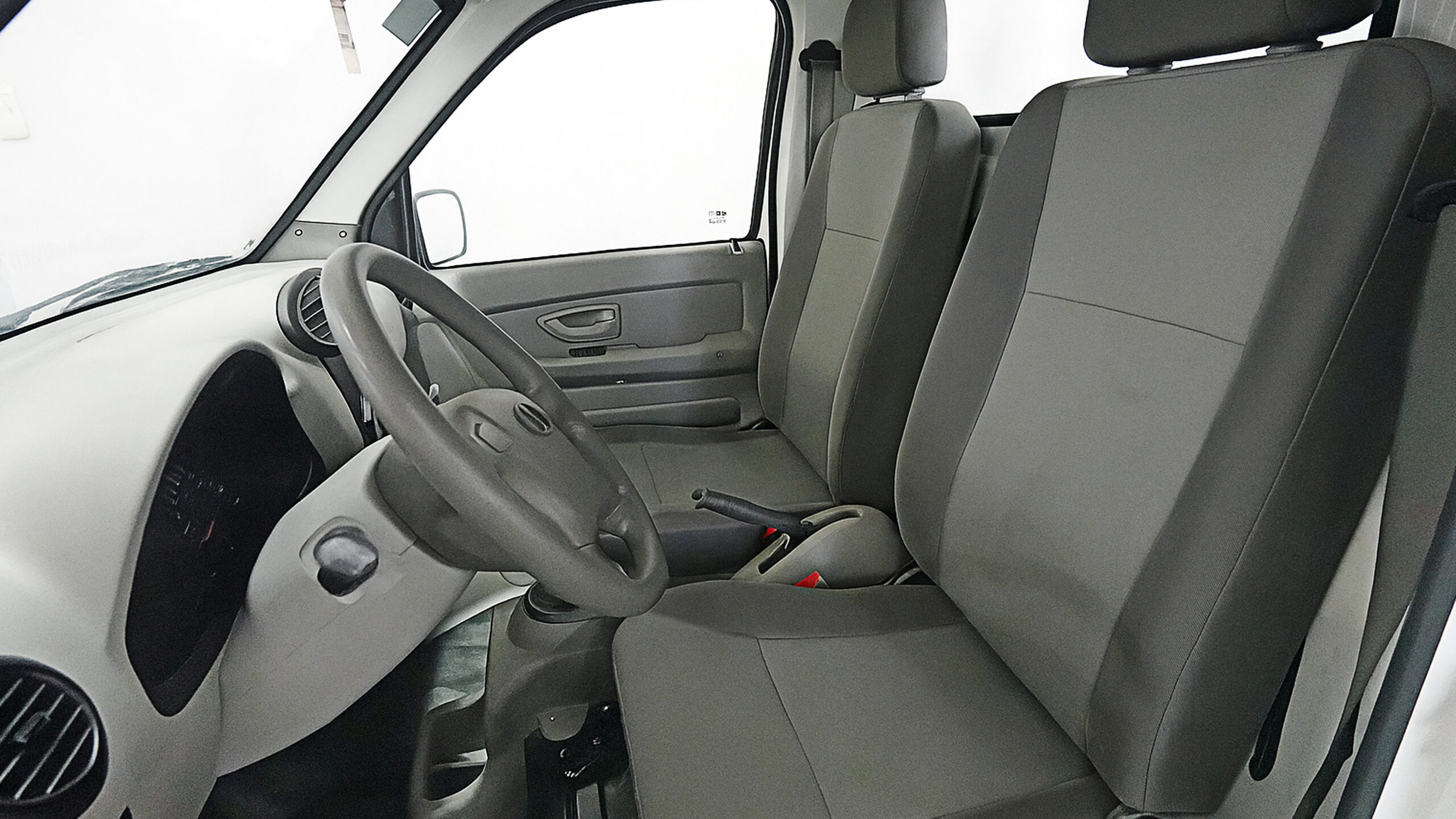

Seat Capacity
|
2
|
|
|
Air Conditioning
|
Standard - Available
|
|
|
Windows
|
Standard / Automatic
|
|
|

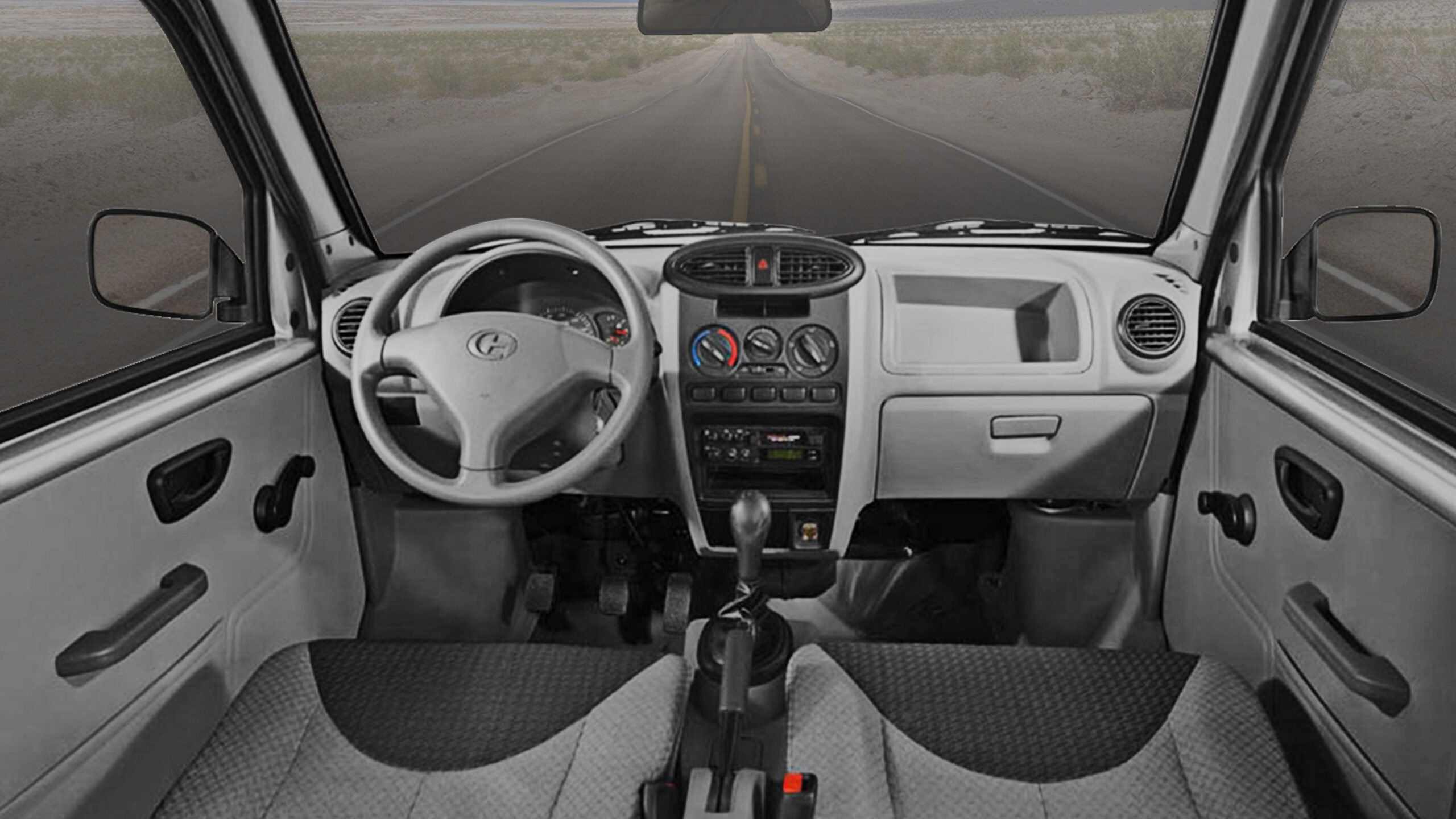

Audio System
|
Radio & USB
|
|
|
Brakes [Service / Parking]
|
Ventilated Disc | Drum
|
|
|
Suspension [Front & Rear]
|
MacPherson Strut & Coil Spring | Leaf Spring
|
|
|
Alternator
|
N / A
|
|
|
Tire Size
|
165 R13 LT
|
|
|
Number of Tires
|
4 + 1 spare
|
|
|
Number of Studs
|
4
|
|
