HIGHER CAPACITY. GREATER PASSENGER COMFORT.

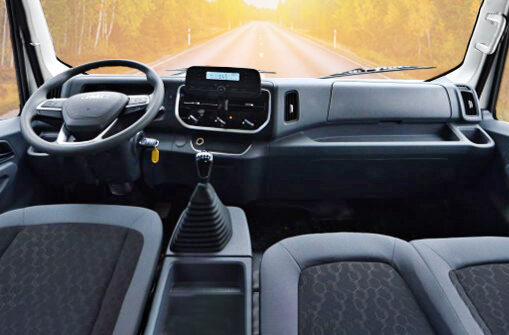

The JMC N810 Class III PUV is designed for operators who need higher passenger capacity without compromising comfort, safety, or efficiency. Powered by a dependable 2.9L CRDi diesel engine and 6-speed manual transmission, it delivers strong performance and fuel economy for city, provincial, and intercity transport routes. Its modern aerodynamic design, ergonomic dashboard, air-conditioned cabin, and premium seating provide a comfortable travel experience for both drivers and passengers.

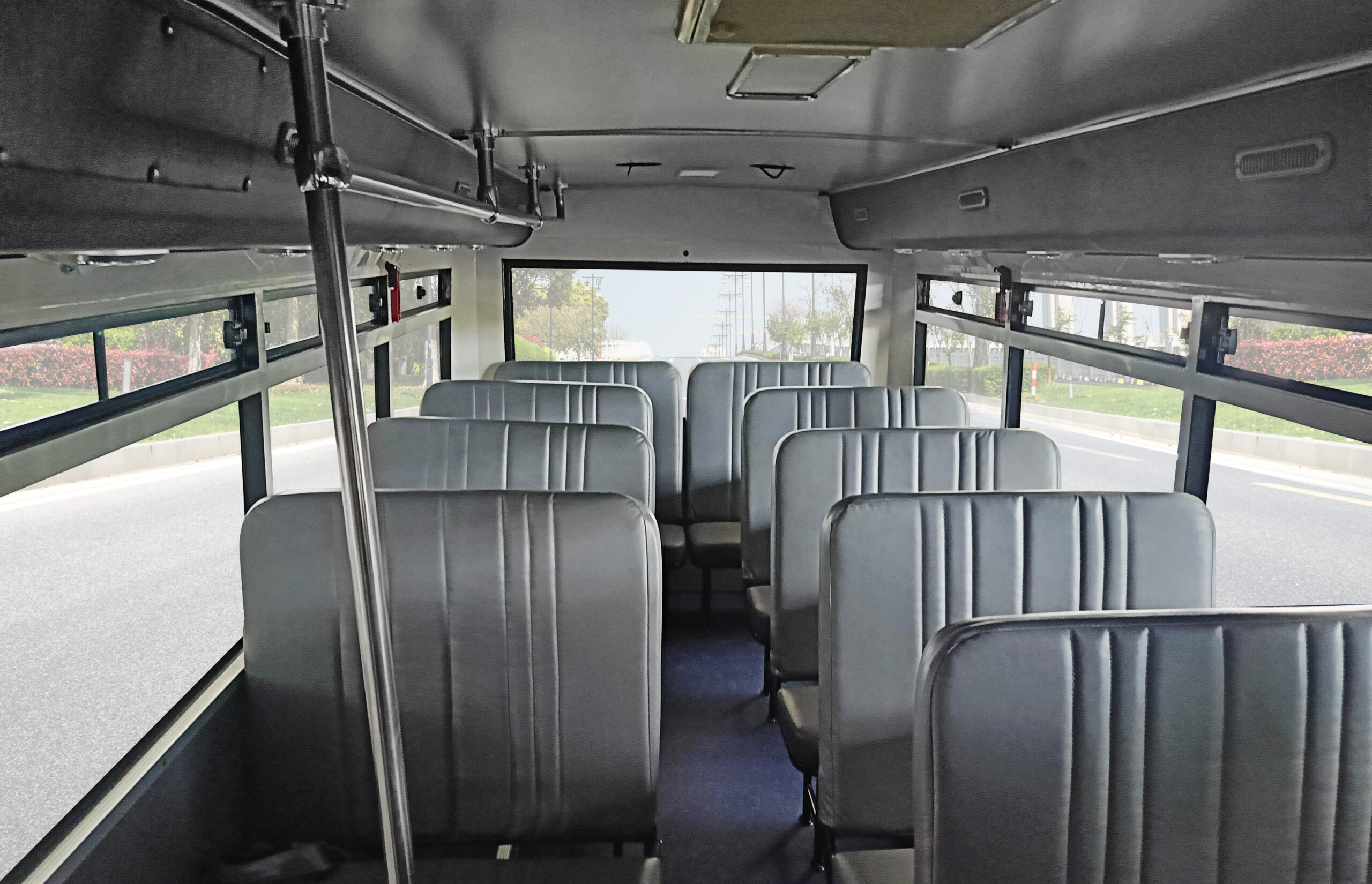

Configured to accommodate 28 passengers plus the driver, the N810 Class III maximizes passenger-carrying capability while maintaining reliability and operational efficiency. Equipped with safety and convenience features such as ABS brakes, electronic folding doors, rear camera display, and a durable heavy-duty chassis, it is an ideal solution for transport cooperatives, fleet operators, and organizations seeking a dependable modern PUV.
|
MECHANICAL FEATURES
|
|
|---|---|
|
Engine Model
|
JX4D30B4H
|
|
Engine Type
|
4-Cylinder, Turbo-Intercooler, CRDI, Diesel Engine
|
|
Displacement
|
2892
|
|
Max Torque (Nm@rpm)
|
450/1200-2450
|
|
Max Power (Hp@rpm)
|
160/2800
|
|
Emission Level
|
Euro IV
|
|
Fuel Tank Capacity (L)
|
120
|
|
Transmission
|
6-Speed Manual
|
|
DIMENSION & WEIGHT
|
|
|---|---|
|
Gross Vehicle Weight (kg)
|
4950
|
|
Payload (kg)
|
2180
|
|
Overall Dimension (LxWxH)
|
5990 x 2180 x 2465
|
|
Wheelbase (mm)
|
3360
|
|
Shape
|
Bus Type
|
|
OTHER FEATURES
|
|
|---|---|
|
Seat Capacity
|
28 Seating (Passenger + Driver)
|
|

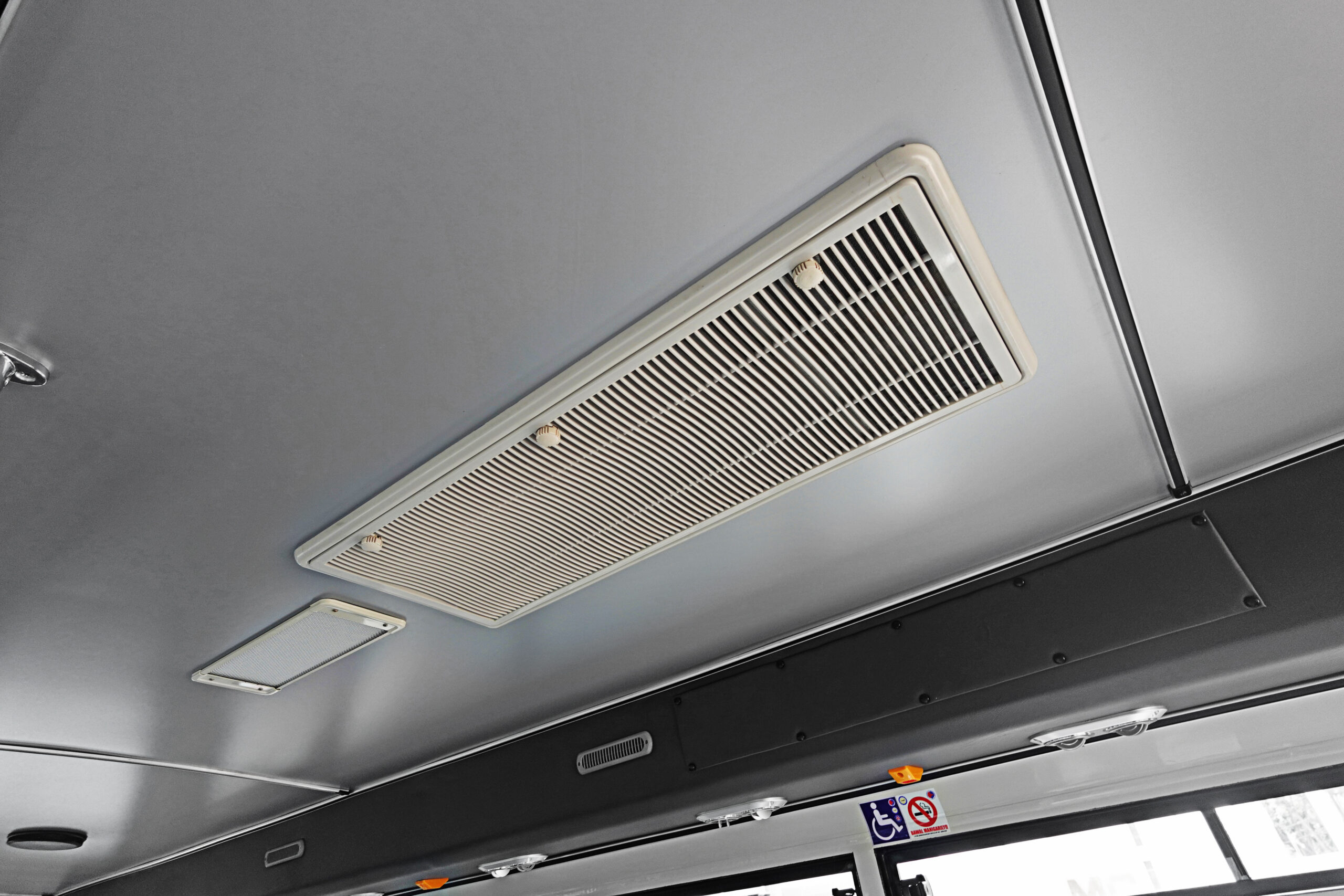

Air Conditioning
|
Standard - Roof Mounted
|
|
Windows
|
Standard - Automatic
|
|
Central Locking
|
Electronic Folding Door
|
|
Audio System
|
Radio & USB and Bluetooth
|
|
Brakes [Mode / Exhaust]
|
Pneumatic with ABS / Spring (Maxi)
|
|
Suspension [Front & Rear]
|
Leaf spring and Shock Absorber
|
|
Alternator
|
12V 110A
|
|
Tire Size
|
7.50R16LT 16PR
|
|
Number of Tires
|
6 + 1 spare
|
|
Number of Studs
|
6
|
