BUILT FOR HEAVY-DUTY HAULING AND SPECIALIZED OPERATIONS

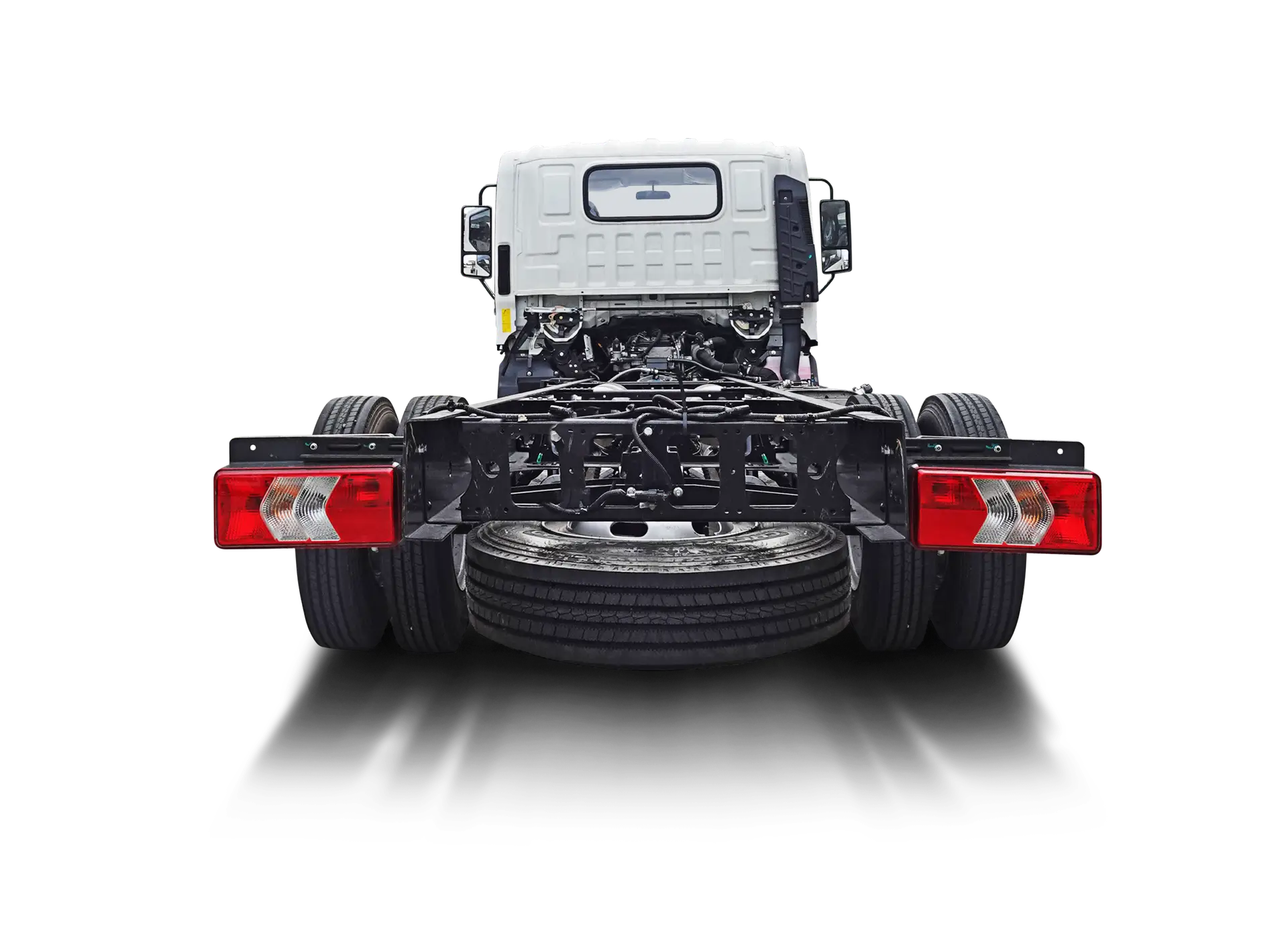

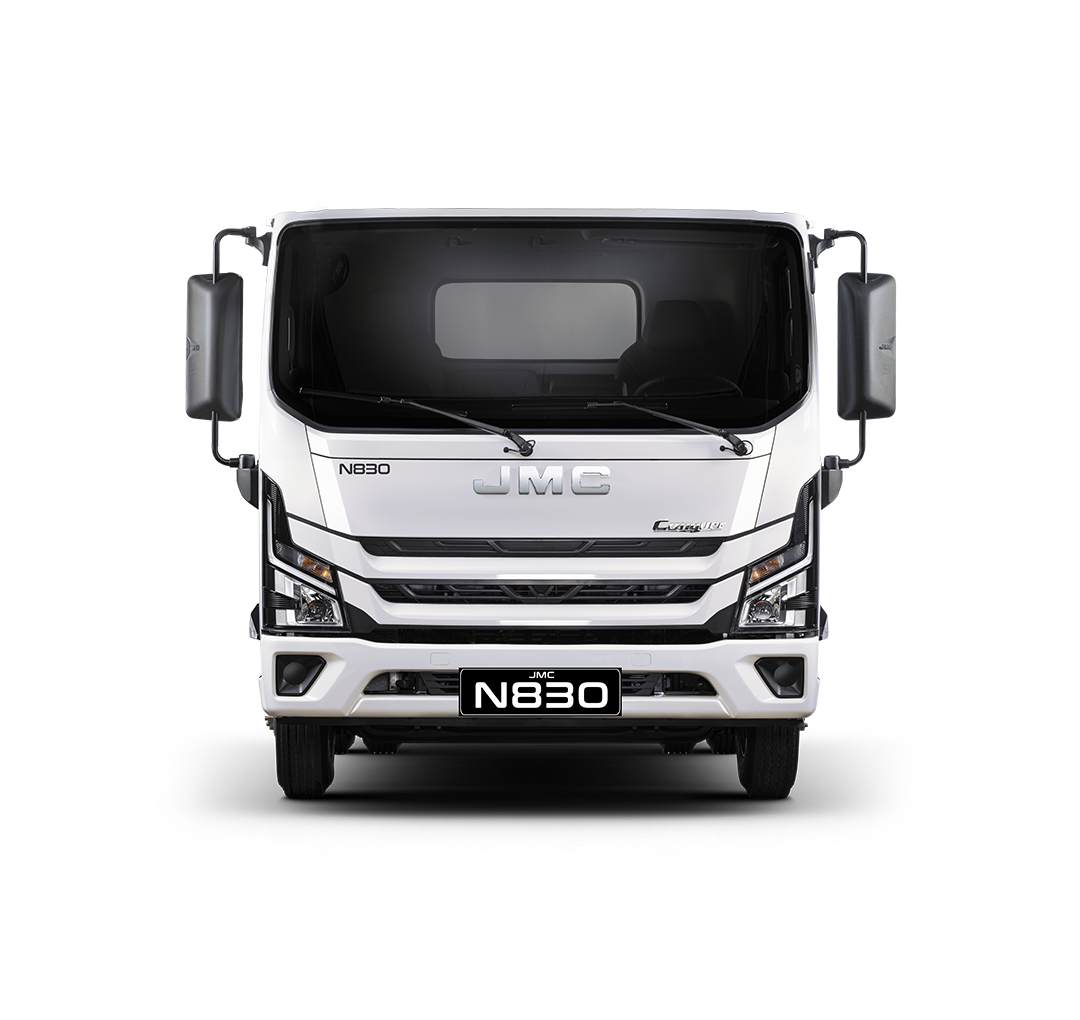

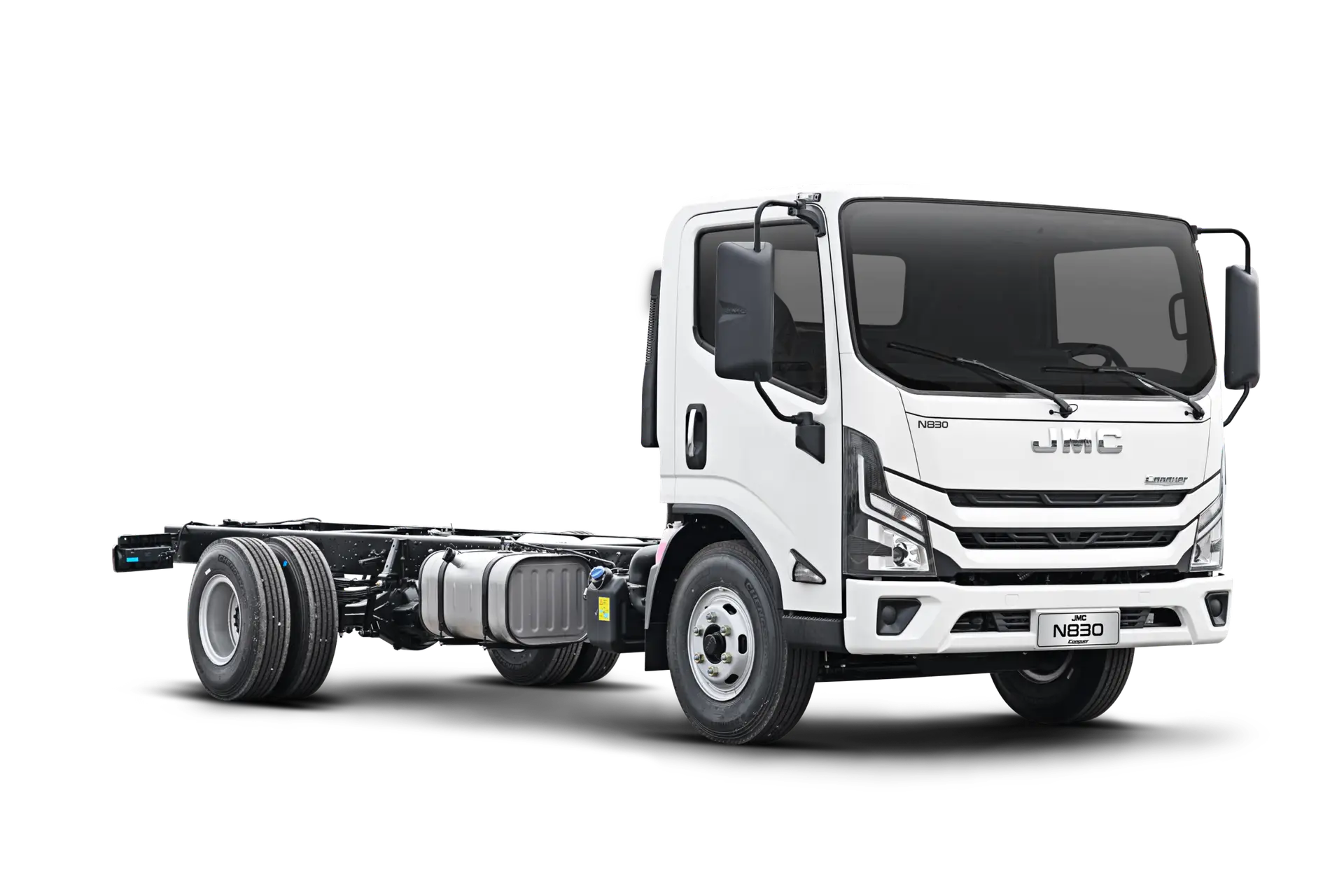

The JMC N830 is a heavy-duty commercial truck engineered for businesses that demand maximum payload capacity, durability, and versatility. Powered by a 2.9L Turbo Intercooler CRDi diesel engine and paired with a 6-speed manual transmission, it delivers dependable performance for logistics, construction, fleet operations, and industrial applications. Its spacious ergonomic cabin, high-strength steel chassis, and modern aerodynamic design ensure both driver comfort and long-term reliability.
With a payload capacity of up to 6,000 kg and a 17-foot cargo body, the N830 is built to handle demanding workloads with ease. Available in Dropside, Aluminum Van, Refrigerated Van, Stake Van, Flatbed, Wing Van, Car Carrier, and Crane configurations, it provides flexible solutions for a wide range of industries. Whether transporting cargo, towing vehicles, or lifting heavy materials, the N830 delivers the power, capability, and efficiency businesses need to keep operations moving.
|
MECHANICAL FEATURES
|
|
|---|---|
|
Engine Model
|
JX4D30B4H
|
|
Engine Type
|
4-cylinder, Turbo-Intercooler, CRDI, Diesel engine
|
|
Displacement
|
2892
|
|
Max Torque (Nm/rpm)
|
450 / 1200-2400
|
|
Max Power [Kw(Hp)/rpm]
|
120(160)/2800
|
|
Emission Level
|
Euro IV
|
|
Fuel Tank Capacity (L)
|
120 (Aluminum)
|
|
Transmission
|
6-Speed Manual
|
|
DIMENSION & WEIGHT
|
|
|---|---|
|
Gross Vehicle Weight (kg)
|
9260
|
|
Payload (kg)
|
6000
|
|
Overall Dimension
(LxWxH) (mm)
|
6990 x 2380 x 2495
|
|
Cargo Length (ft)
|
17
|
|
Wheelbase (mm)
|
3815
|
|
OTHER FEATURES
|
|
|---|---|
|
Tilting Cabin
|
Standard
|
|
Seat Capacity
|
3
|
|
Air Conditioning
|
Standard - Available
|
|
Windows
|
Standard - Powered
|
|
Central Locking
|
Standard
|
|
Audio System
|
Radio, USB and Bluetooth
|
|
Brakes [Service / Parking]
|
Pneumatic with ABS / Spring (Maxi)
|
|
Suspension [Front & Rear]
|
Leaf Spring and Shock Absorber
|
|
Alternator
|
12V 110A
|
|
Tire Size
|
8.25 R16LT 16PR
|
|
Number of Tires
|
6 + 1 spare
|
|
Number of Studs
|
6
|
|
CAR CARRIER
|
|
|---|---|
|
Maximum Under-lift
Capacity (kg)
|
1200
|
|
Rated Towing
Capacity (kg)
|
3000
|
|
Rated Tranction of
Winch (kg)
|
4000
|
|
Winch Quantity
|
1
|
|
Platform Load
Capacity (kg)
|
3000
|
|
BOOM CRANE
|
|
|---|---|
|
Crane Model
|
SQ3.2SK2Q
|
|
Crane Capacity (Tons)
|
3.2
|
|
MECHANICAL FEATURES
|
|
|---|---|
|
Engine Model
|
JX4D30B4H
|
|
Engine Type
|
4-cylinder, Turbo-Intercooler, CRDI, Diesel engine
|
|
Displacement
|
2892
|
|
Max Torque (Nm/rpm)
|
450 / 1200-2400
|
|
Max Power [Kw(Hp)/rpm]
|
120(160)/2800
|
|
Emission Level
|
Euro IV
|
|
Fuel Tank Capacity (L)
|
120 (Aluminum)
|
|
Transmission
|
6-Speed Manual
|
|
DIMENSION & WEIGHT
|
|
|---|---|
|
Gross Vehicle Weight (kg)
|
9260
|
|
Payload (kg)
|
6000
|
|
Overall Dimension
(LxWxH) (mm)
|
6990 x 2380 x 2495
|
|
Cargo Length (ft)
|
17
|
|
Wheelbase (mm)
|
3815
|
|
OTHER FEATURES
|
|
|---|---|
|
Tilting Cabin
|
Standard
|
|
Seat Capacity
|
3
|
|
Air Conditioning
|
Standard - Available
|
|
Windows
|
Standard - Powered
|
|
Central Locking
|
Standard
|
|
Audio System
|
Radio, USB and Bluetooth
|
|
Brakes [Service / Parking]
|
Pneumatic with ABS / Spring (Maxi)
|
|
Suspension [Front & Rear]
|
Leaf Spring and Shock Absorber
|
|
Alternator
|
12V 110A
|
|
Tire Size
|
8.25 R16LT 16PR
|
|
Number of Tires
|
6 + 1 spare
|
|
Number of Studs
|
6
|
|
CAR CARRIER
|
|
|---|---|
|
Maximum Under-lift
Capacity (kg)
|
1200
|
|
Rated Towing
Capacity (kg)
|
3000
|
|
Rated Tranction of
Winch (kg)
|
4000
|
|
Winch Quantity
|
1
|
|
Platform Load
Capacity (kg)
|
3000
|
|
BOOM CRANE
|
|
|---|---|
|
Crane Model
|
SQ3.2SK2Q
|
|
Crane Capacity (Tons)
|
3.2
|
