Vehicle Overview

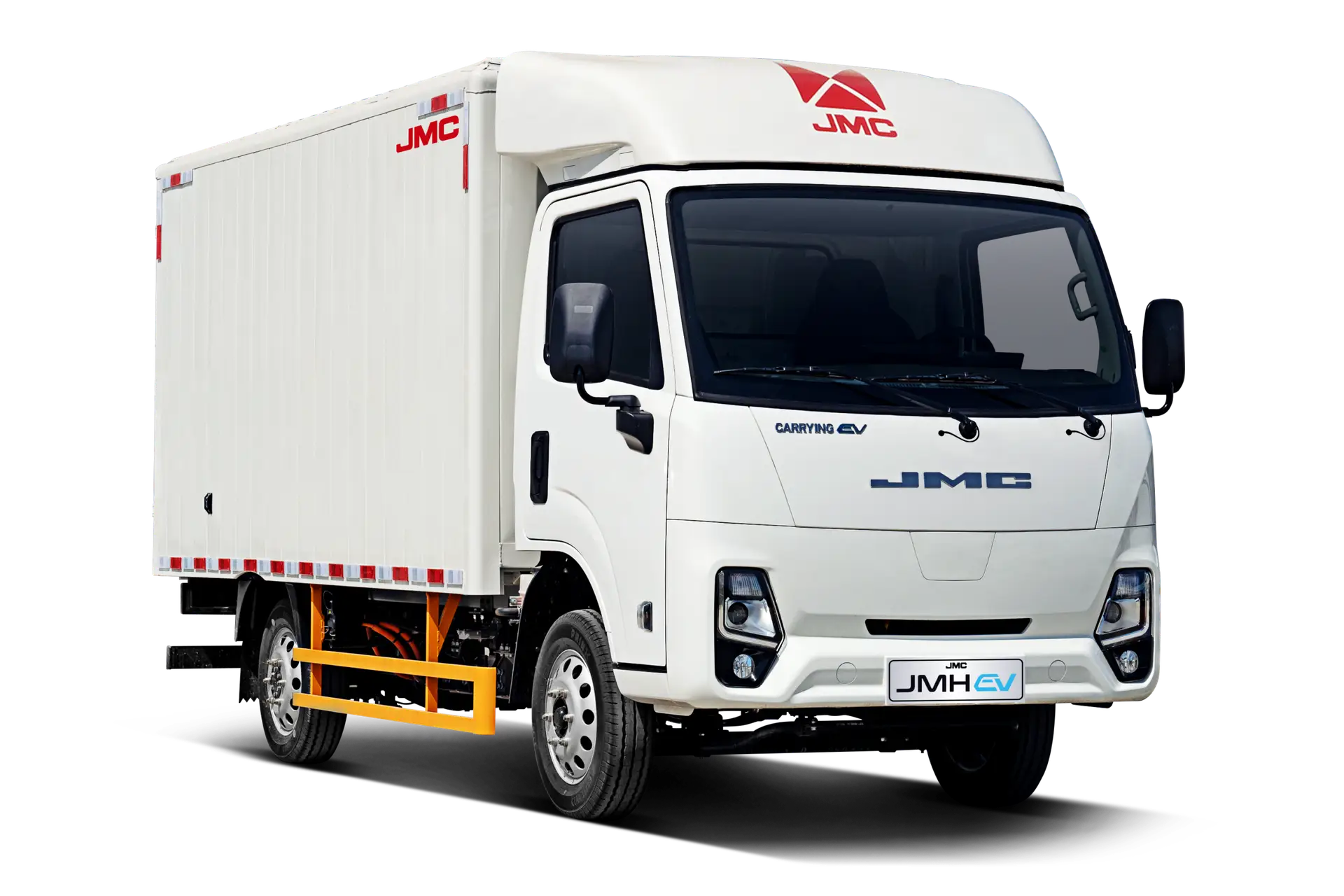

       The JMH EV Closed Van Truck is a next-generation electric commercial vehicle engineered for modern urban logistics. Designed with zero emissions and low operating costs in mind, it delivers efficient, reliable performance without compromising on power or payload. Its spacious cargo compartment, durable high-strength steel body, and advanced electric drivetrain make it an ideal solution for last-mile delivery, city transport, and environmentally responsible fleet operations.

       Built for both driver comfort and operational safety, the JMH EV features a seamless cabin design, advanced electronic hydraulic braking, and intelligent power steering for confident control in busy city environments. With long driving range, fast charging capability, and thoughtfully engineered components, this electric workhorse supports businesses looking to improve efficiency, reduce environmental impact, and future-proof their logistics operations.

Technical Information​

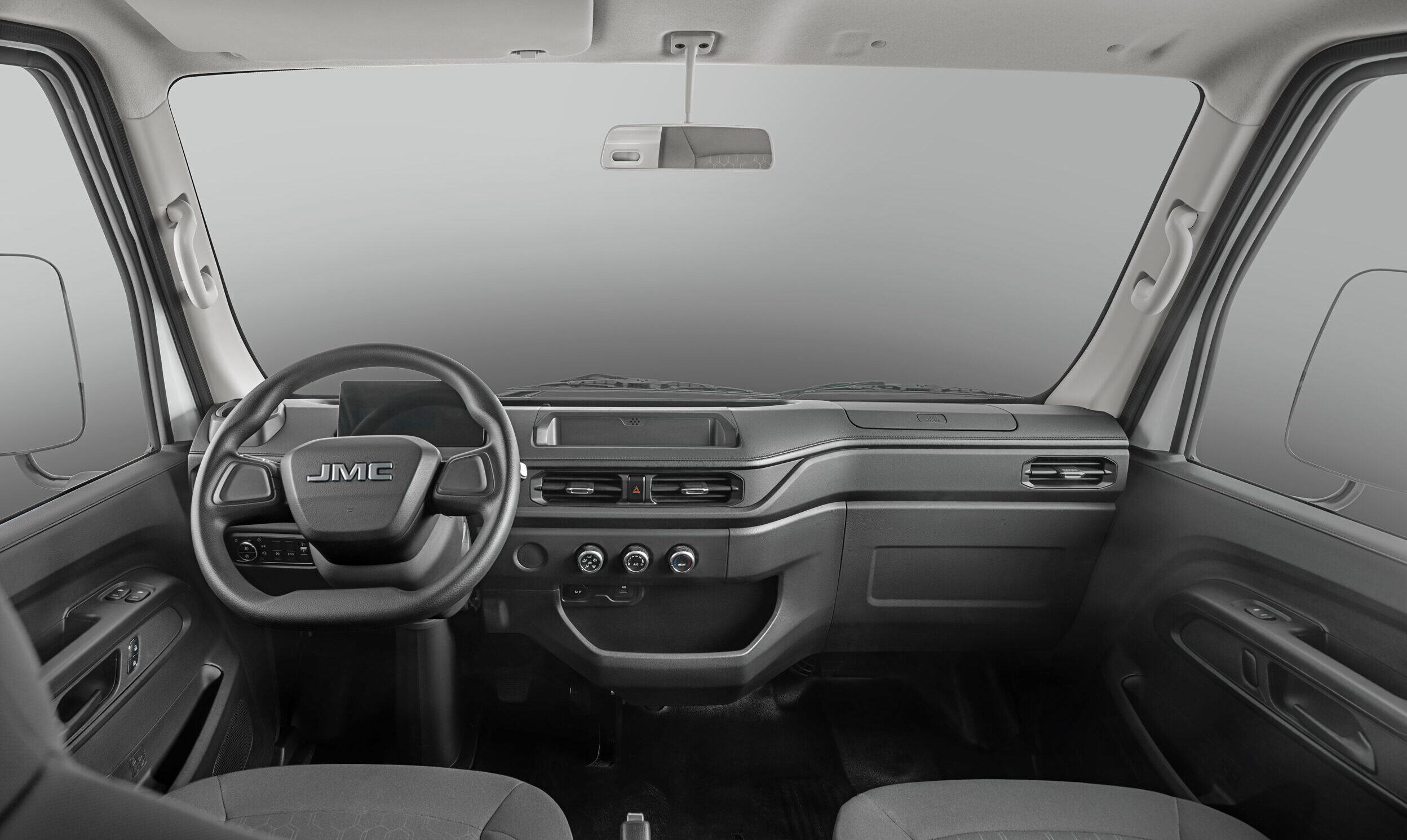

Interior
Body Config
MECHANICAL FEATURES
4 WHEELER
6 WHEELER
Engine Model
JX5040XXYTED2BEV
Engine Type
Pure Electric
Peak Power (kw)
90
105
Peak Torque (Nm)
240
300
Motor Type
Permanent Magnet Synchronous Motor
Battery Type
CATL LiFeP04
Battery Capacity (kwh)
68.75
Battery Range (km)
300 (CLTC)
200 (CHTC)
Charging Time (Hrs)
(DC) 30min (30% - 80%) ; (AC) 8.5hrs (20% - 100%)
DIMENSION & WEIGHT
Gross Vehicle Weight (kg)
3510
5000
Cargo Length (Ft)
12.5
13.8
Payload (kg)
2180
3670
Overall Dimension (LxWxH) (mm)
5595 x 1880 x 2110
5595 x 1880 x 2080
Wheelbase (mm)
3100
3360
OTHER FEATURES
Seat Capacity
2
Air Conditioning
Electric Air Conditioner
Windows
Standard - Automatic
Gear Box
-
Audio System
Standard Radio, Bluetooth Calling/Music, USB Music
Brakes [Service / Parking]
EHBS Electronic Hydraulic Braking System
Suspension [Front & Rear]
Lateral Stabilizer Bar
Steering System
X-EPS Electronic Power Steering
Tire Size
195/75R16LT 12PR
185/75R16C 8PR
Number of Tires
4 + 1 spare
6 + 1
Number of Studs
6
