HEAVY-DUTY PERFORMANCE FOR DEMANDING OPERATIONS

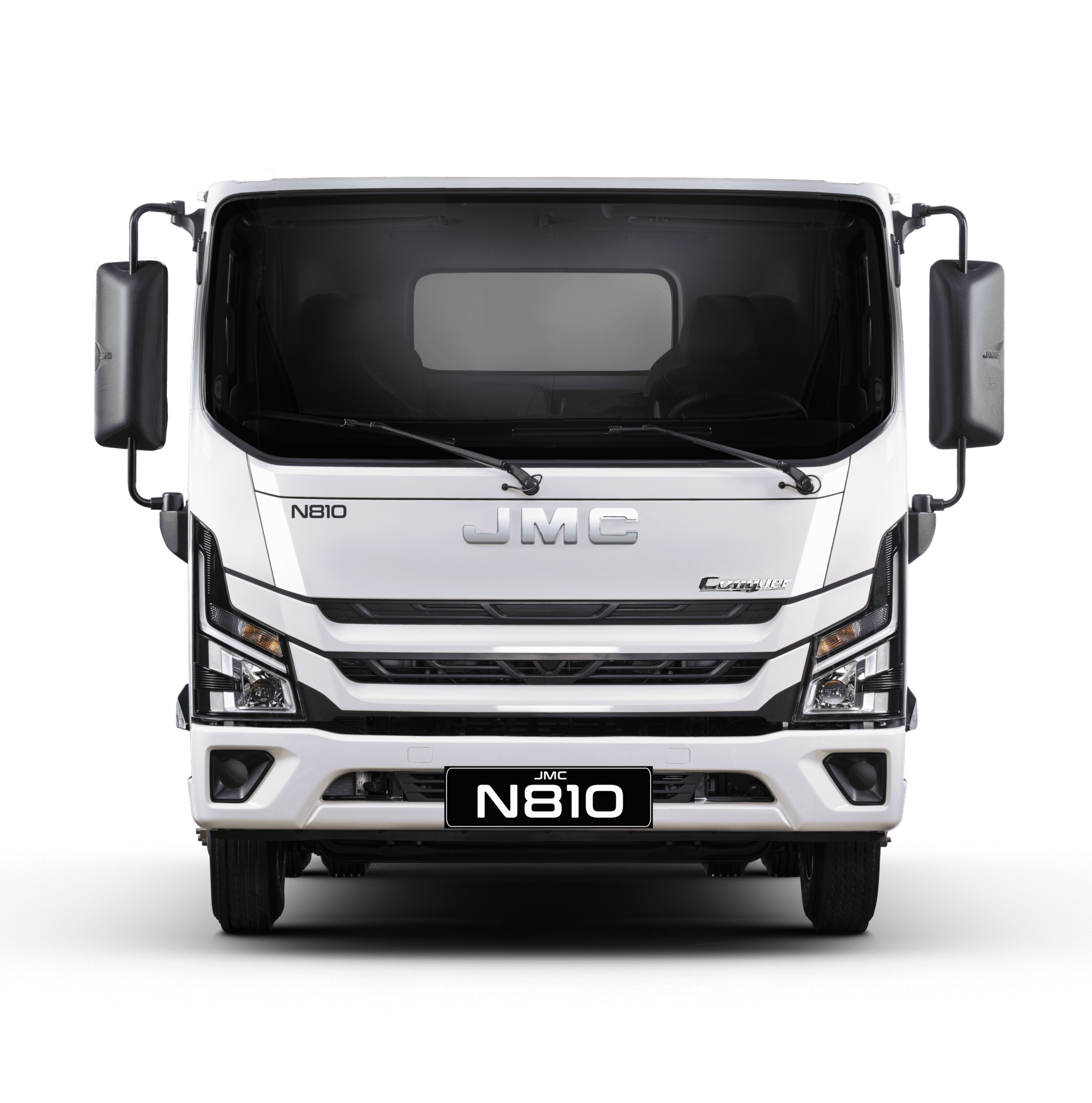

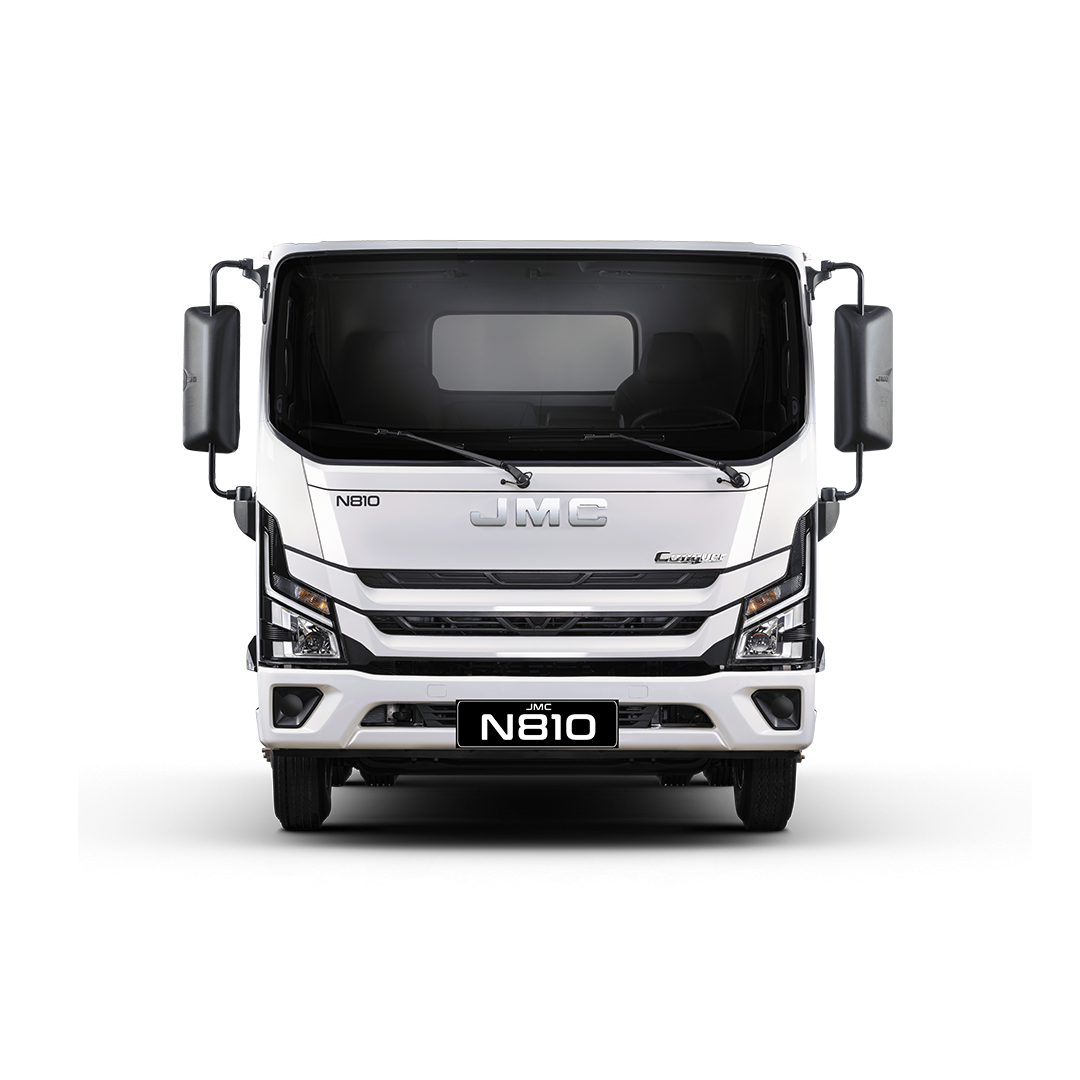

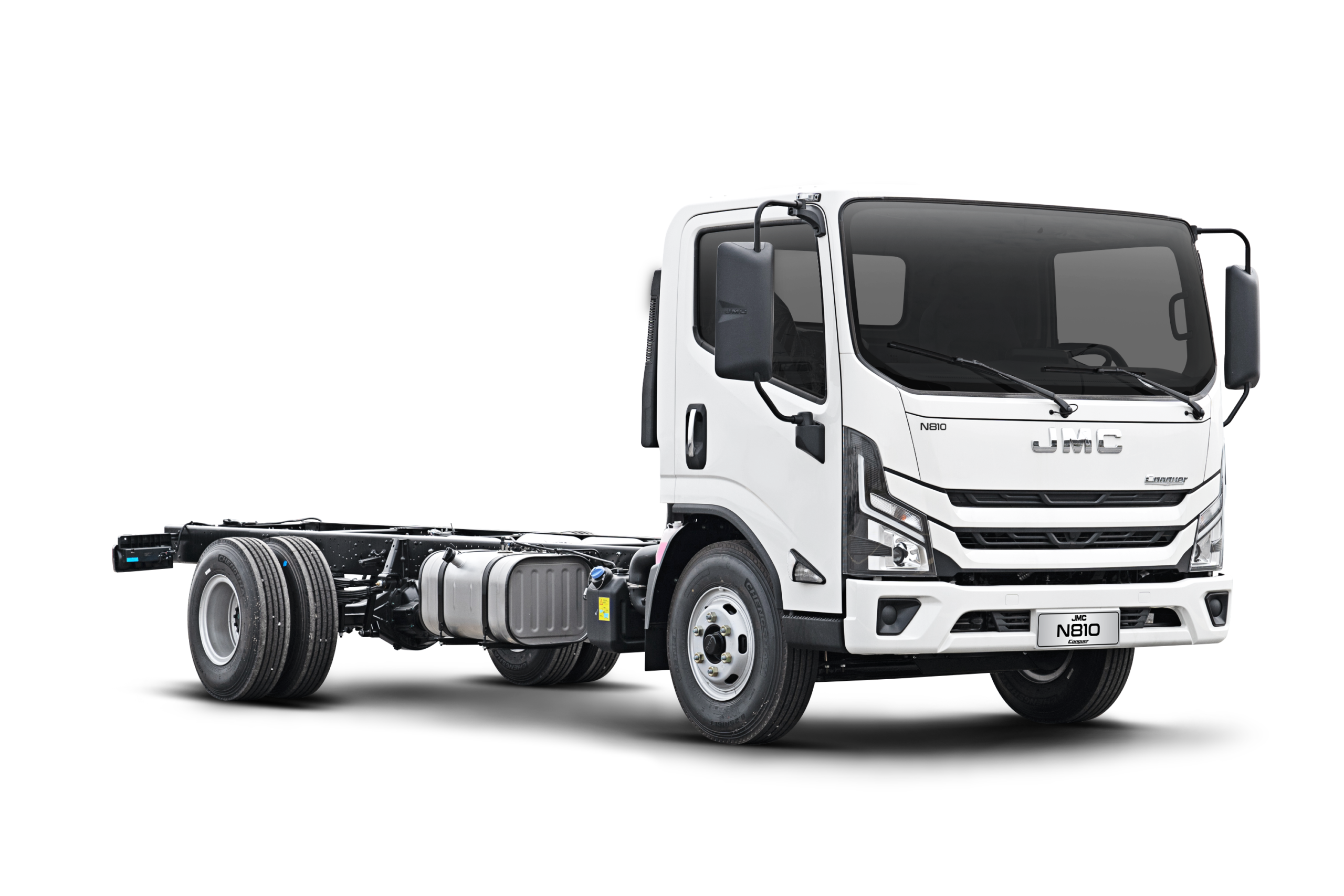

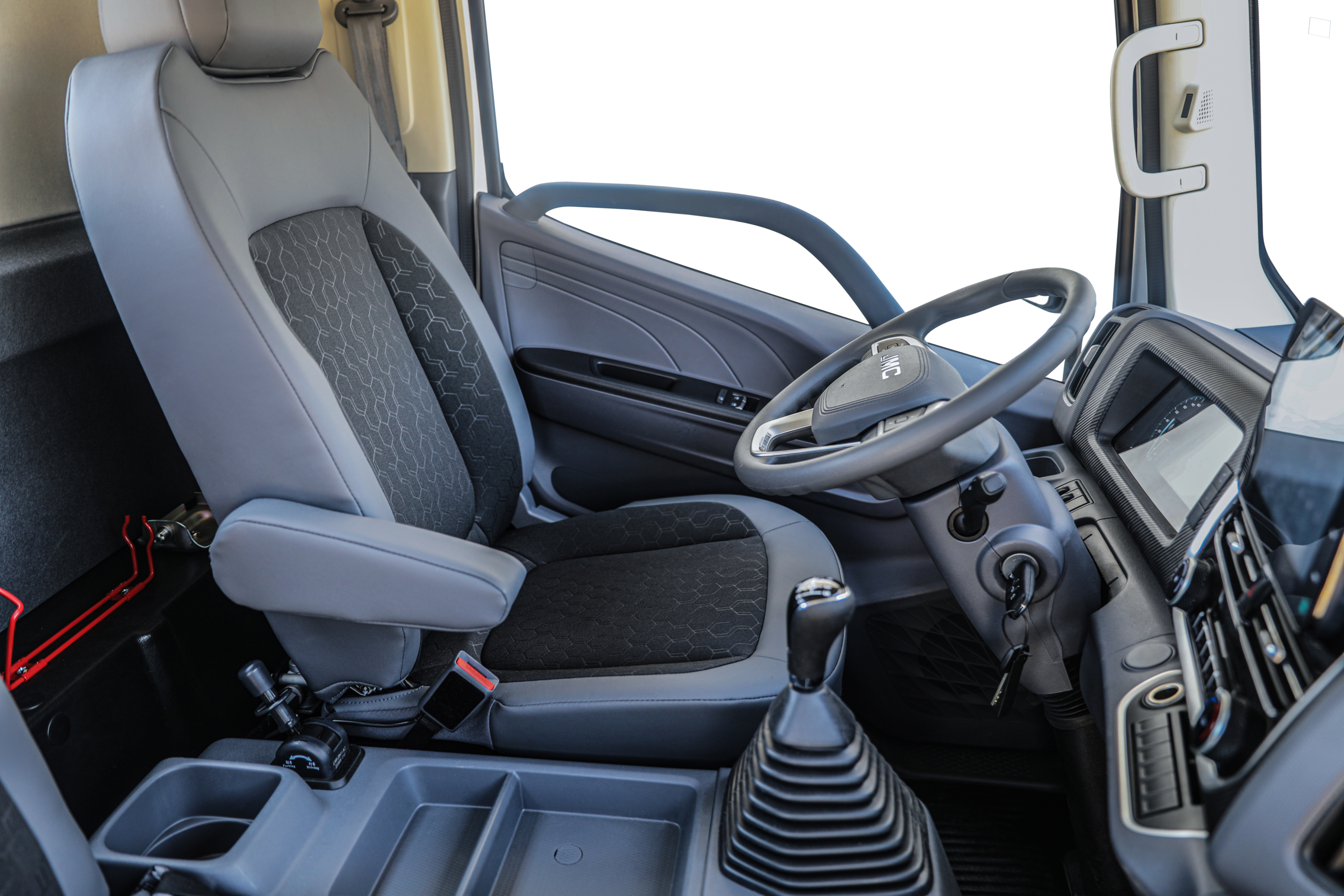

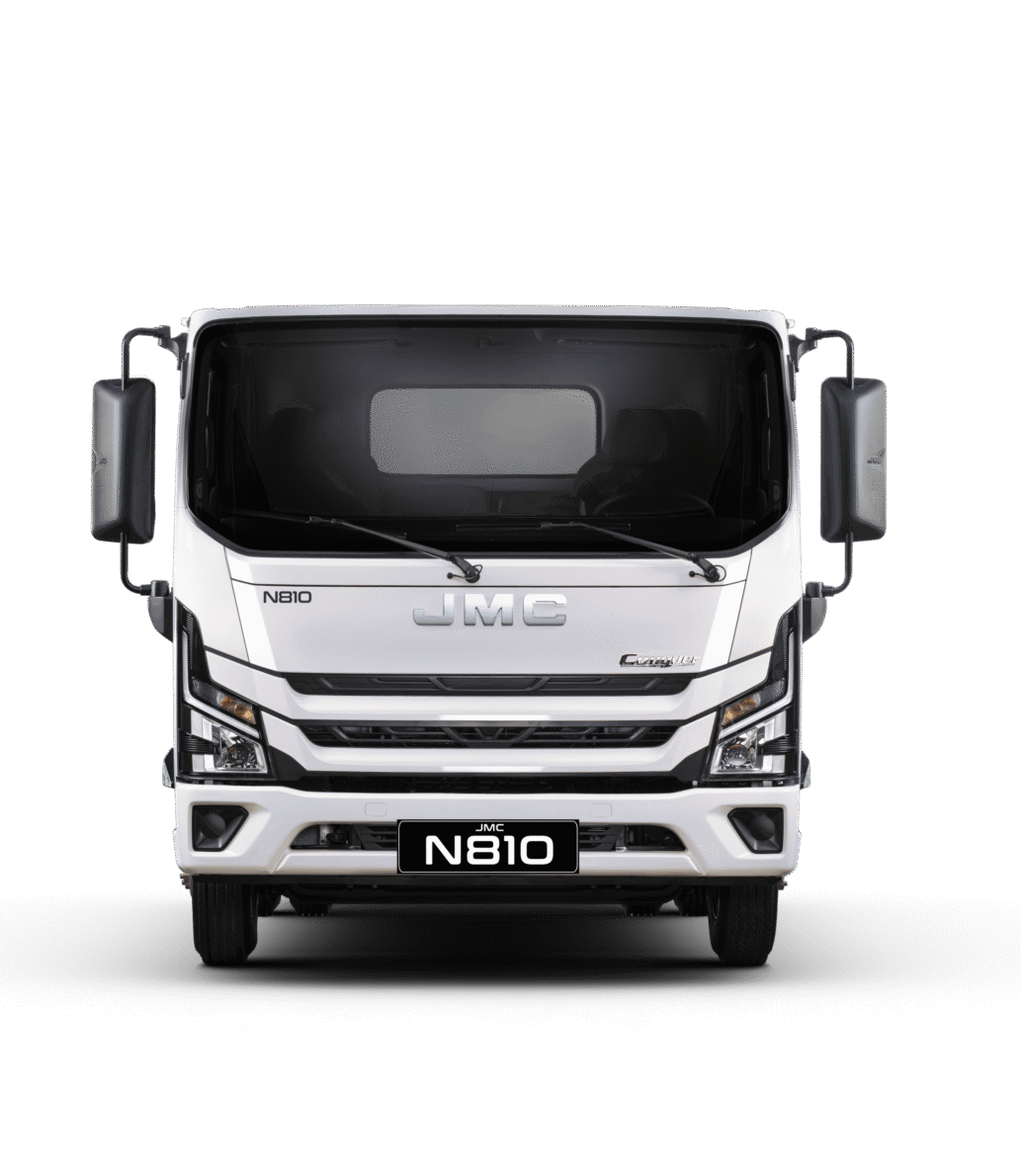

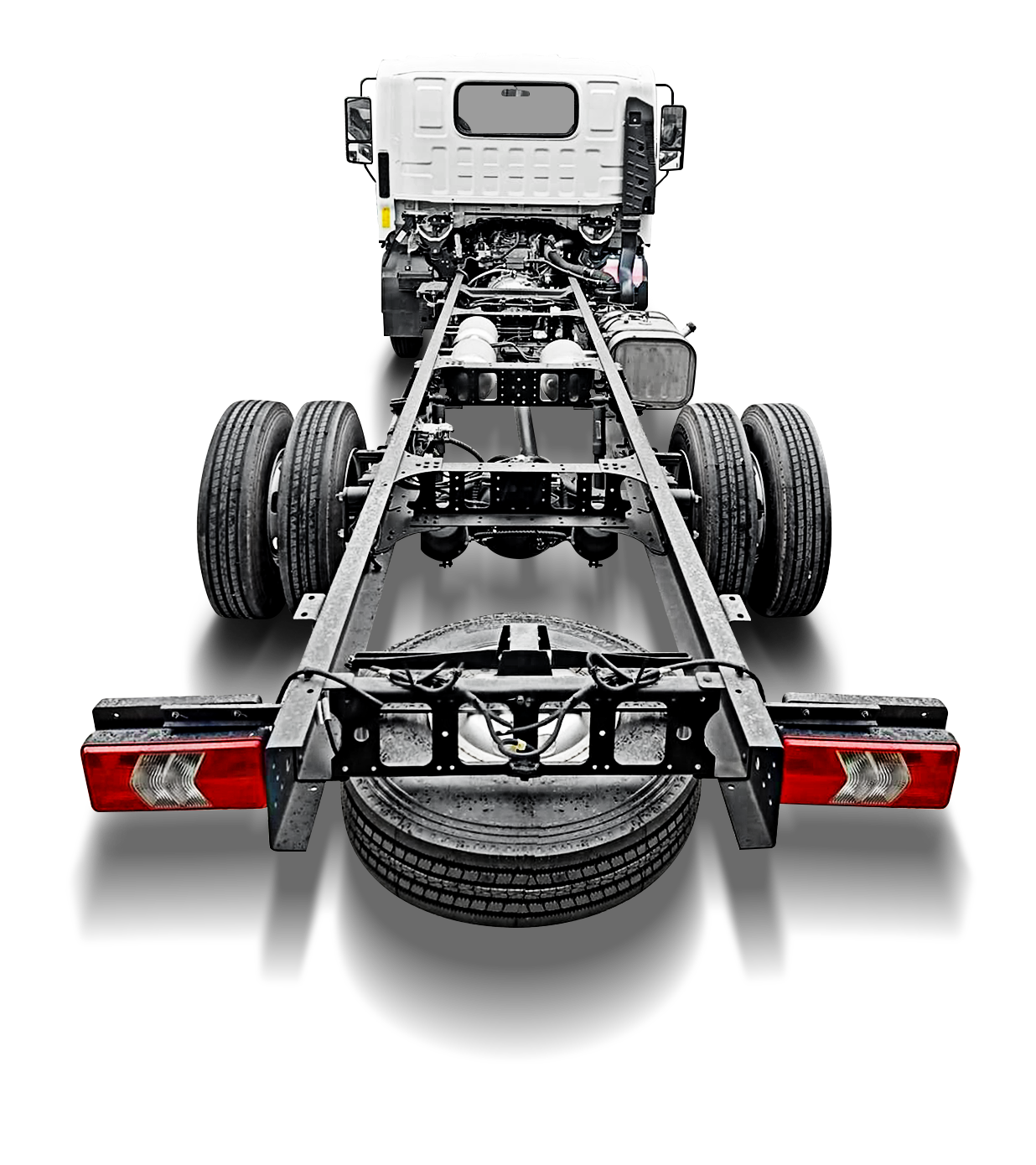

The JMC N810 is a powerful commercial truck built for businesses that require greater performance, durability, and versatility. Equipped with a 2.9L Turbo Intercooler CRDi diesel engine, a 6-speed manual transmission, and a high-strength steel chassis, the N810 delivers the power and reliability needed for logistics, distribution, construction, and specialized transport applications. Its spacious ergonomic cabin and modern aerodynamic design help ensure driver comfort and operational efficiency on every journey.
With a payload capacity of up to 2,180 kg and a 14-foot cargo length, the N810 is designed to handle demanding workloads with ease. Available in Dropside, Aluminum Van, Refrigerated Van, and Dump Truck configurations, it provides flexible solutions for a wide range of industries. Whether transporting cargo, maintaining cold-chain deliveries, or supporting construction operations, the N810 offers the durability, capability, and value businesses need to keep moving forward.
|
MECHANICAL FEATURES
|
|
|
|---|---|---|
|
Engine Model
|
JX4D30B4H
|
|
|
Engine Type
|
4-cylinder, Turbo-Intercooler, CRDI, Diesel engine
|
|
|
Displacement
|
2892
|
|
|
Max Torque (Nm/rpm)
|
450 / 1200-2400
|
|
|
Max Power [Kw(Hp)/rpm]
|
120(160)/2800
|
|
|
Emission Level
|
Euro IV
|
|
|
Fuel Tank Capacity (L)
|
120 (Aluminum)
|
|
|

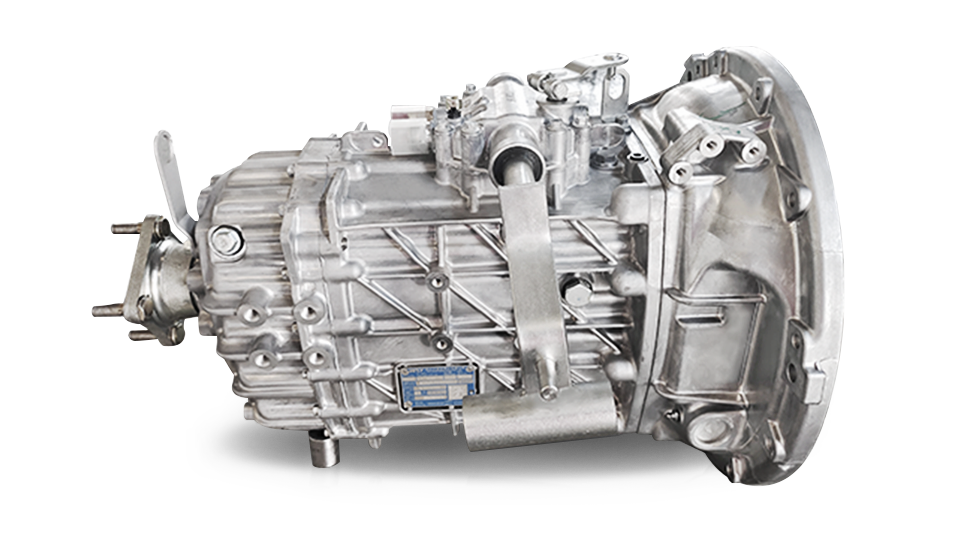

Transmission
|
6-Speed Manual
|
|
|
DIMENSION & WEIGHT
|
|
|
|---|---|---|
|
Gross Vehicle Weight (kg)
|
4950
|
|
|
Payload (kg)
|
2180
|
|
|
Overall Dimension (LxWxH) (mm)
|
5990 x 2180 x 2465
|
|
|
Cargo Length (ft)
|
14
|
|
|
Wheelbase (mm)
|
3360
|
|
|
OTHER FEATURES
|
|
|
|---|---|---|
|
Tilting Cabin
|
Standard
|
|
|

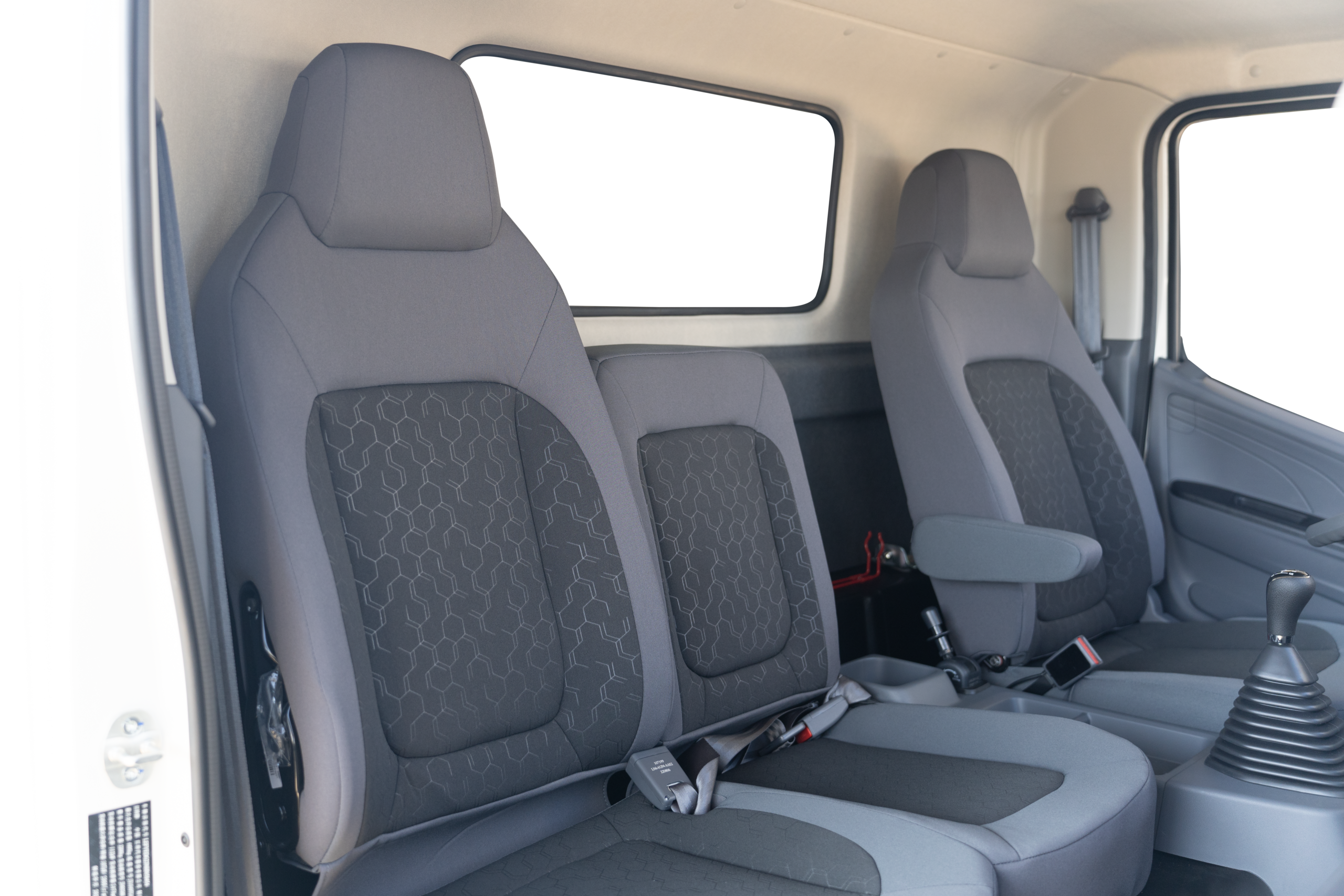

Seat Capacity
|
3
|
|
|
Air Conditioning
|
Standard
|
|
|

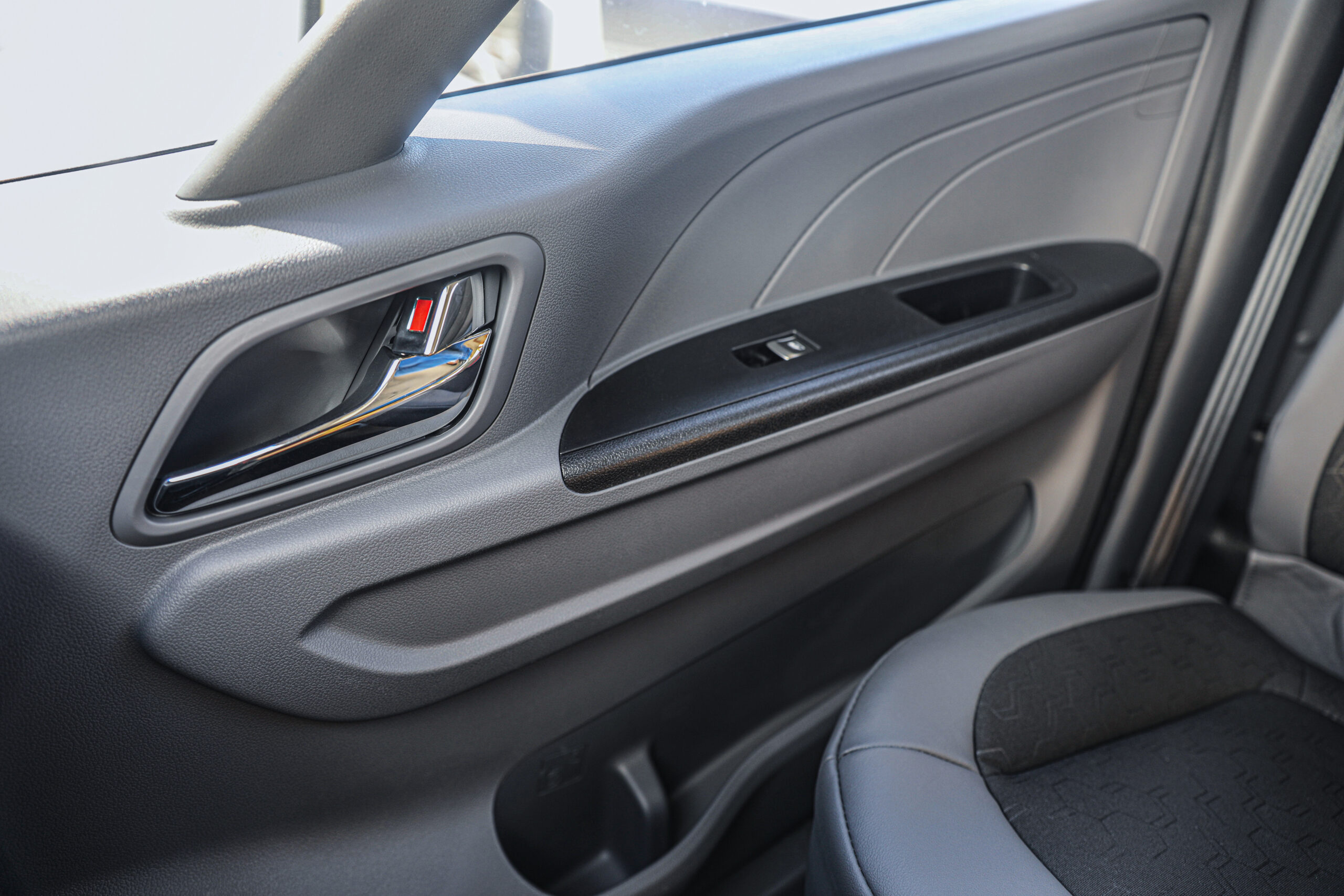

Windows
|
Standard - Powered
|
|
|
Central Locking
|
Standard
|
|
|

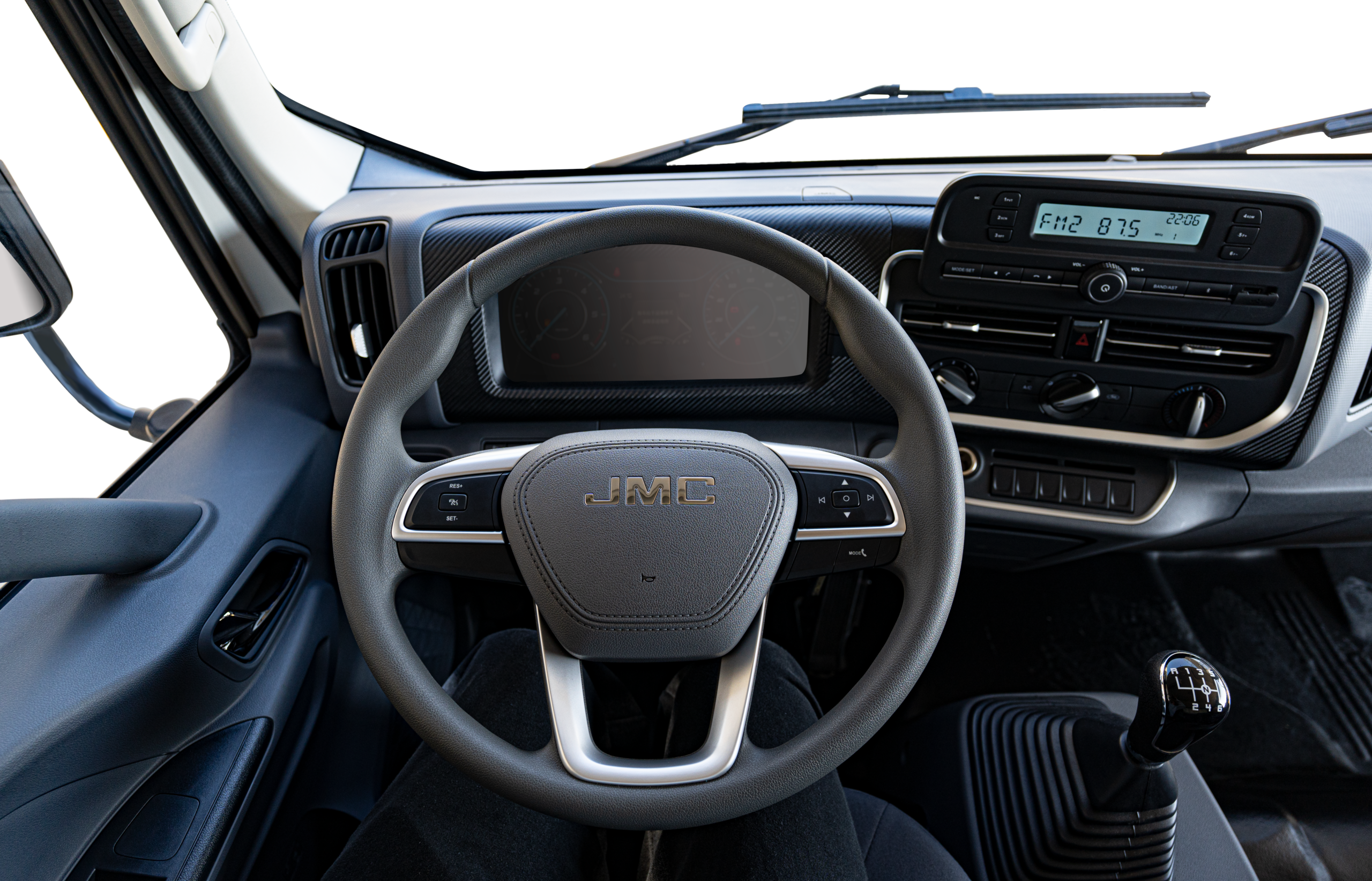

Audio System
|
Radio, USB and Bluetooth
|
|
|
Brakes [Service / Parking]
|
Pneumatic with ABS / Spring (Maxi)
|
|
|
Suspension [Front & Rear]
|
Leaf Spring with Shock Absorber
|
|
|
Alternator
|
12V 110A
|
|
|
Tire Size
|
7.50R16LT 16PR
|
|
|
Number of Tires
|
6 + 1 spare
|
|
|
Number of Studs
|
6
|
|
|
