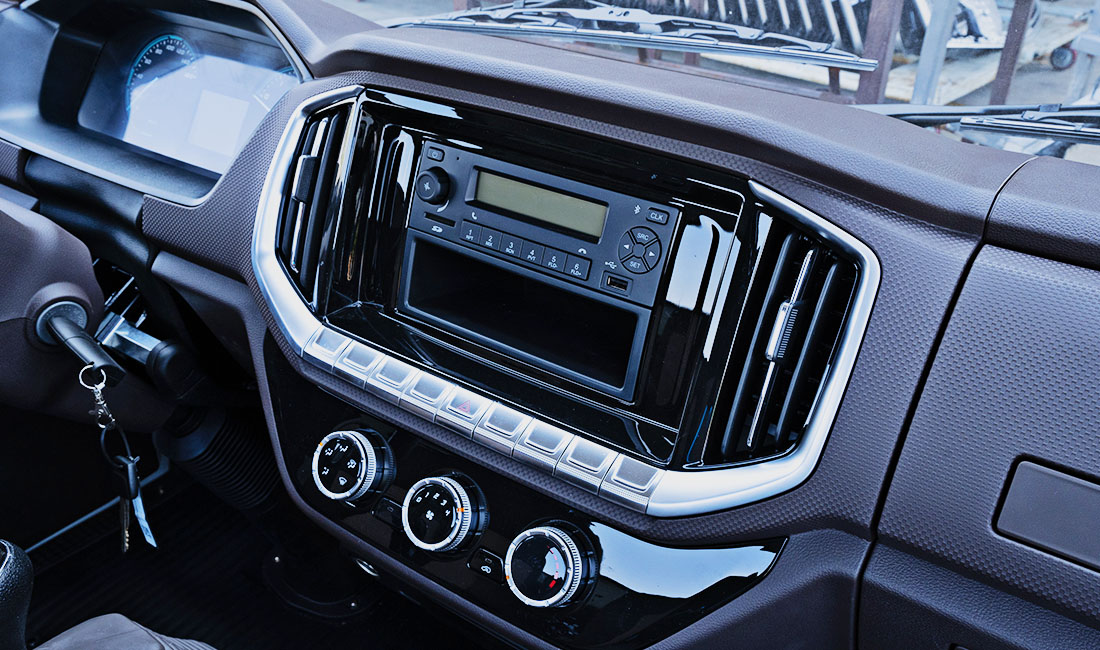

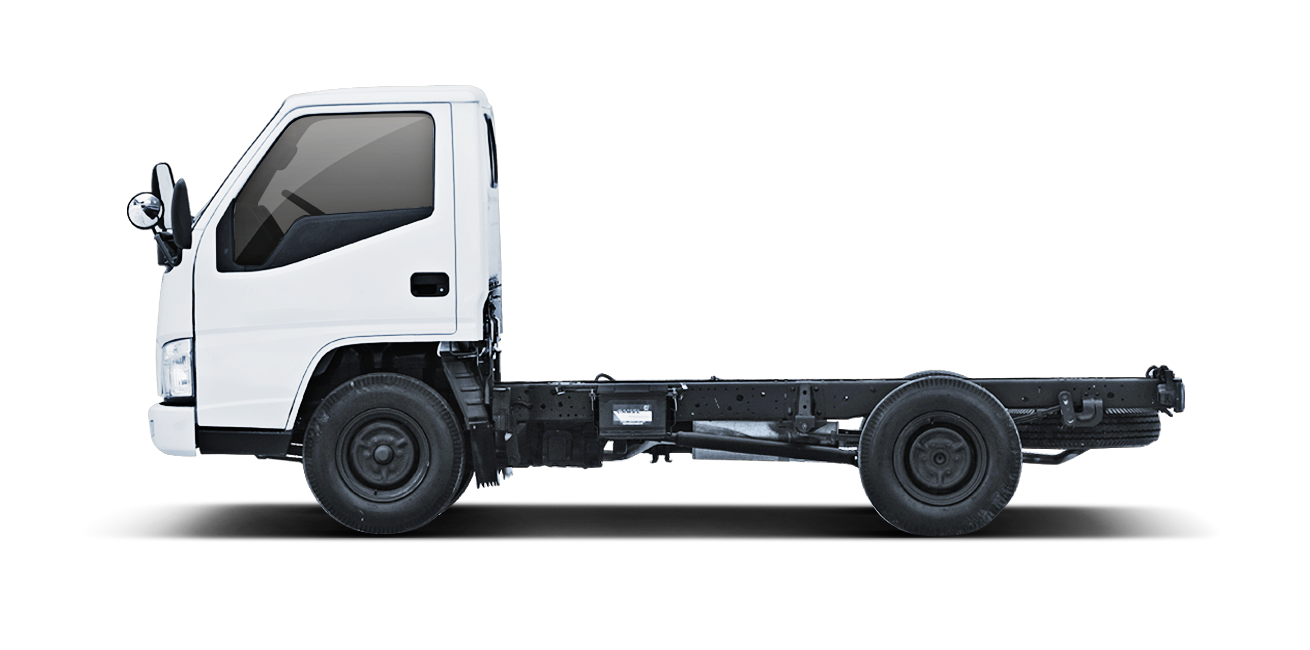

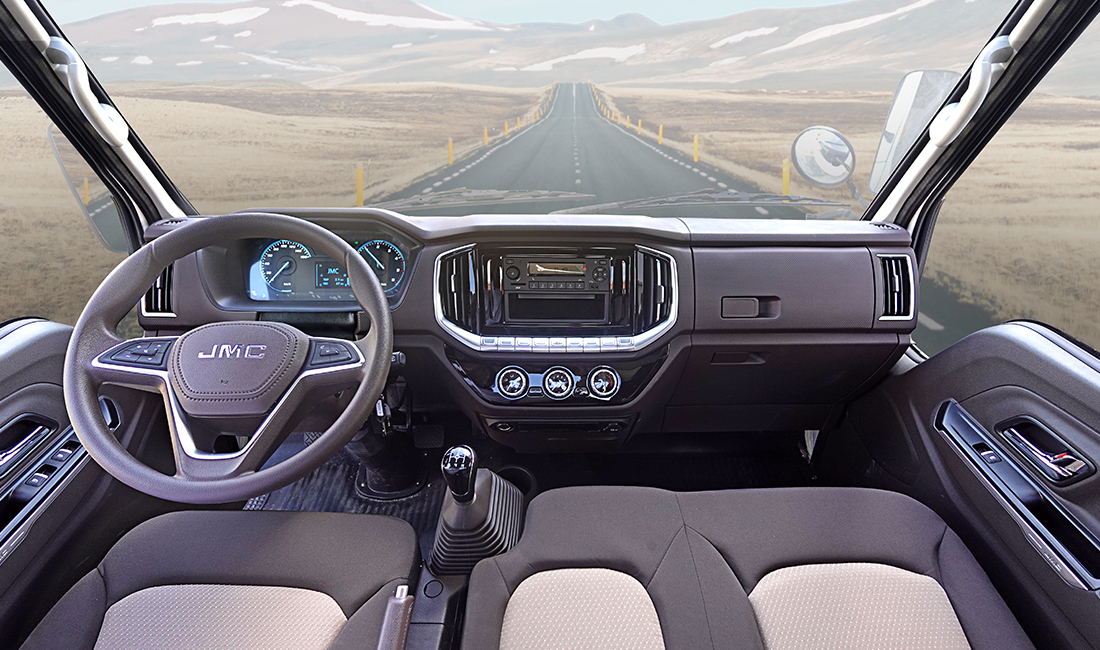

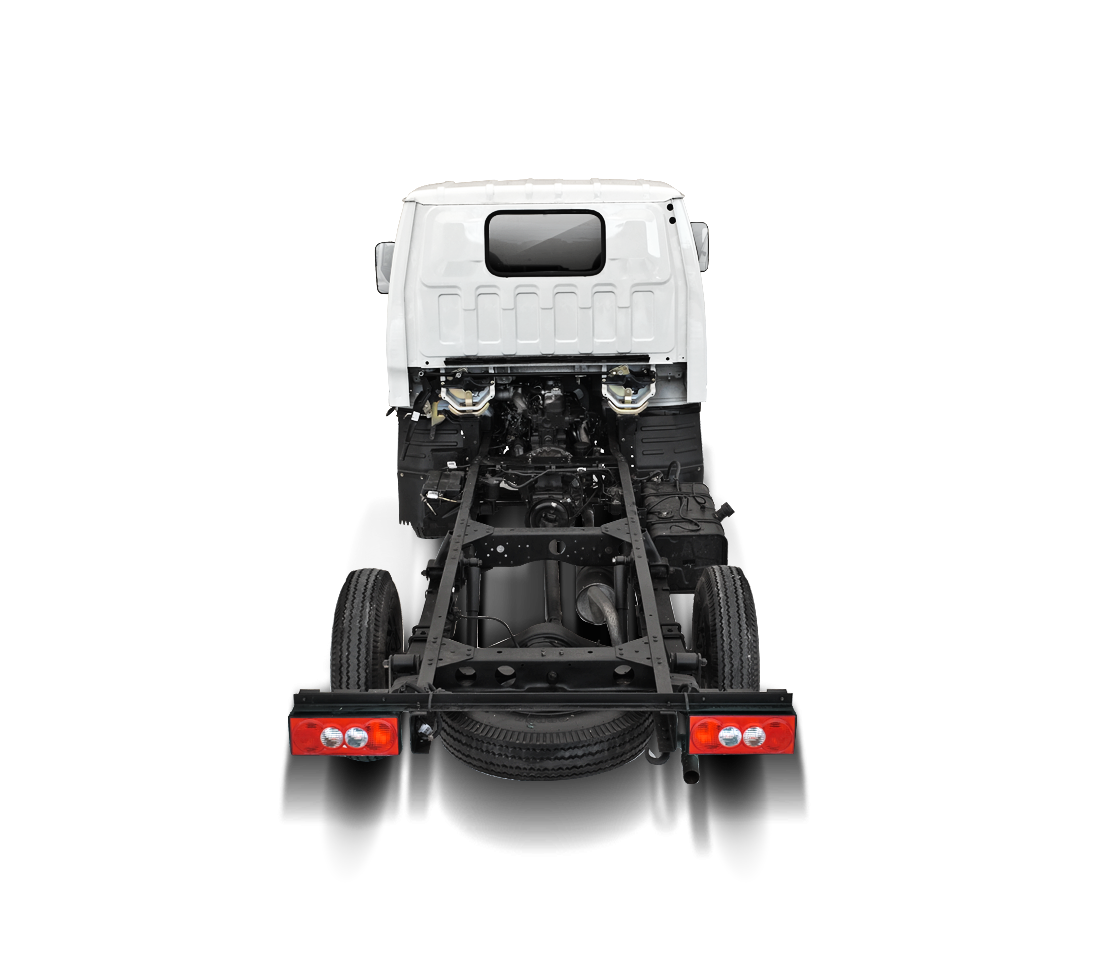

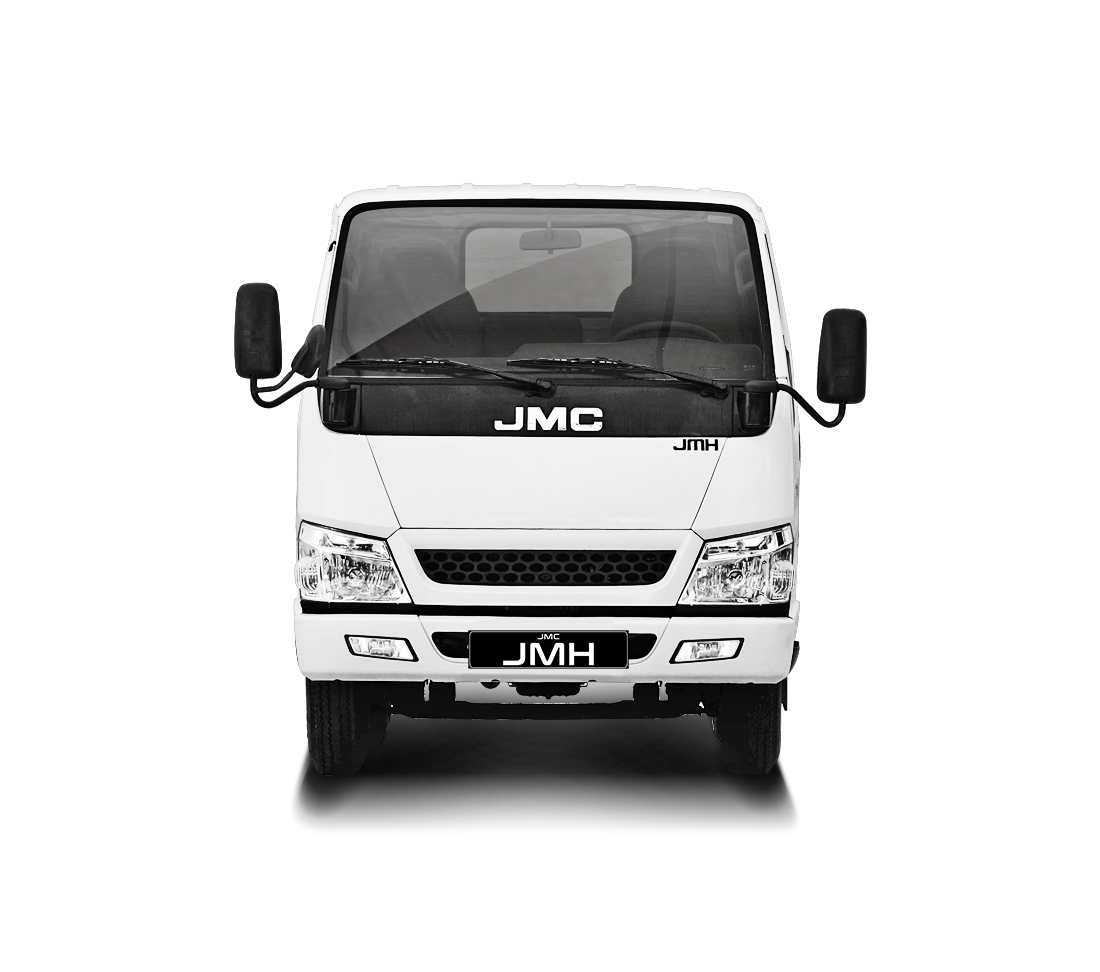

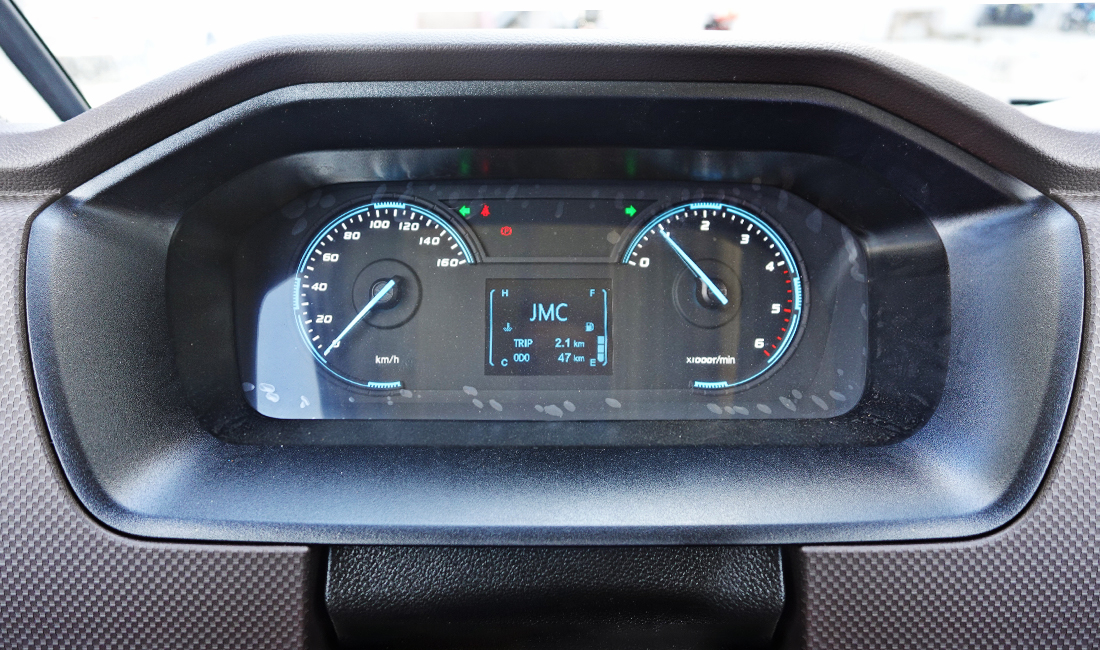

Designed for mass transportation or for commercial use, the JMH is the perfect vehicle for your business. With its rigid and sturdy chassis, this vehicle can be customized in different configurations to suit your purpose. The JMH is powered by a 4JB1 direct-injection engine with a maximum output of 77 hp at 3,600 rpm and 172 Nm of torque mated to a powerful five speed manual transmission. Inside is a modern instrument panel with LCD odometer and a massive windshield which offers a wider view of the road. The JMH standard equipment includes power steering, power windows, central locking, foldaway front passenger seat, tilting cabin and audio system. (OPTIONAL: AIR CONDITIONING UNIT)
|
Model
|

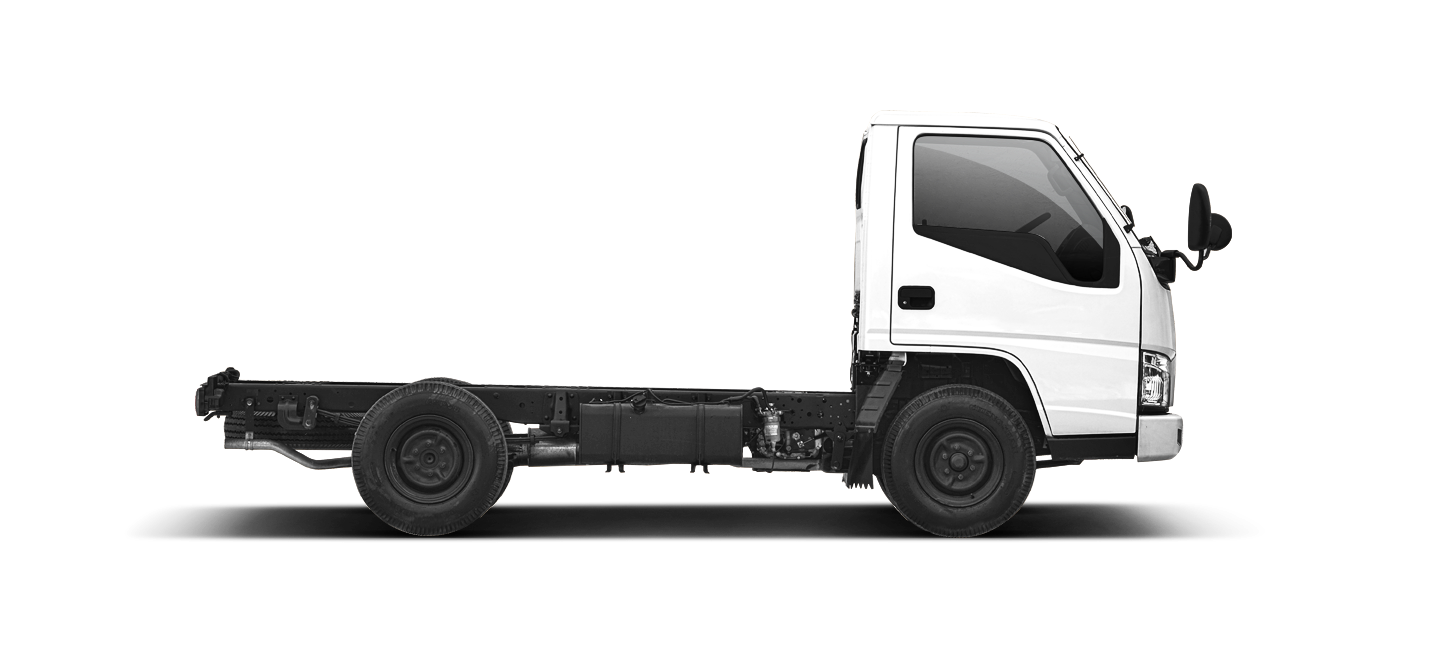

JMH Single Cab CC
|
JMH Double Cab Dropside
|
|---|---|---|
|
MECHANICAL FEATURES
|
|
|
|
Engine Model
|
JX493ZLQ4B
|
JX493ZLQ4B
|
|
Engine Type
|
4-cylinder, Turbo-Intercooler, CRDI, Diesel engine
|
4-cylinder, Turbo-Intercooler, CRDI, Diesel engine
|
|
Displacement
|
2771
|
2771
|
|
Max Torque (Nm/rpm)
|
220/2000
|
220/2000
|
|
Max Power (hp/rpm)
|
101/3600
|
101/3600
|
|
Emission Level
|
E IV
|
E IV
|
|
Fuel Tank Capacity (L)
|
63
|
63
|
|

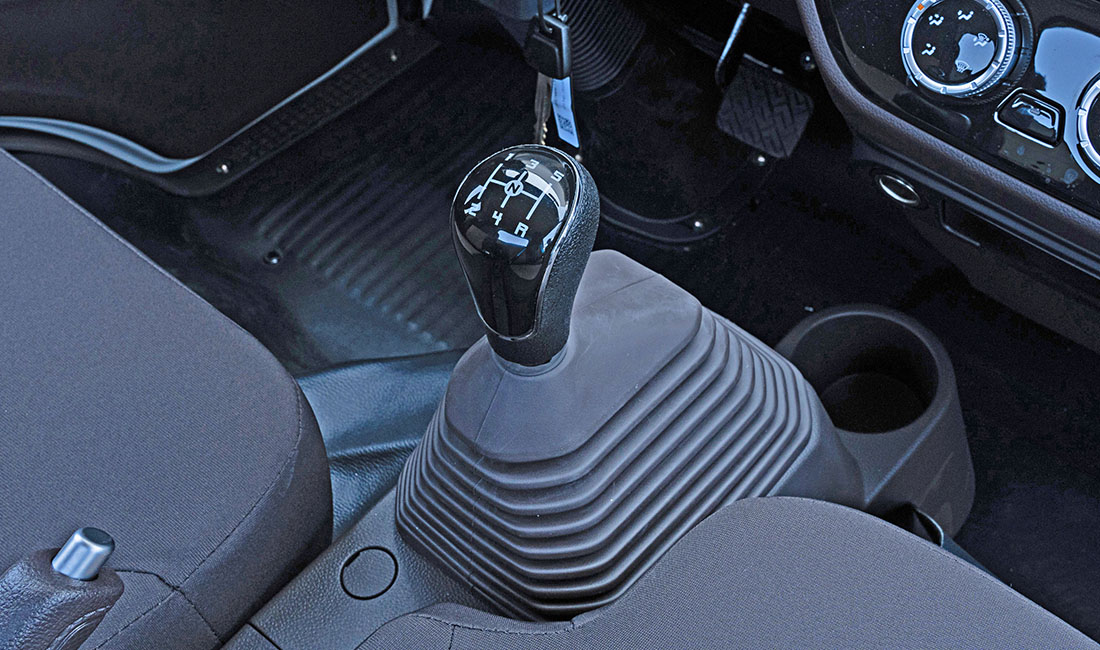

Transmission
|
5-Speed Manual
|
5-Speed Manual
|
|
DIMENSION & WEIGHT
|
|
|
|---|---|---|
|
Gross Vehicle Weight (kg)
|
3865
|
3865
|
|
Payload (kg)
|
2000
|
2000
|
|
Overall Dimension (LxWxH)
|
4735 x1690x1980
|
4735 x1690x1980
|
|
Cargo Length (ft)
|
10
|
7
|
|
Wheelbase (mm)
|
2490
|
2490
|
|
OTHER FEATURES
|
|
|
|---|---|---|
|
Tilting Cabin
|
Standard
|
NA
|
|

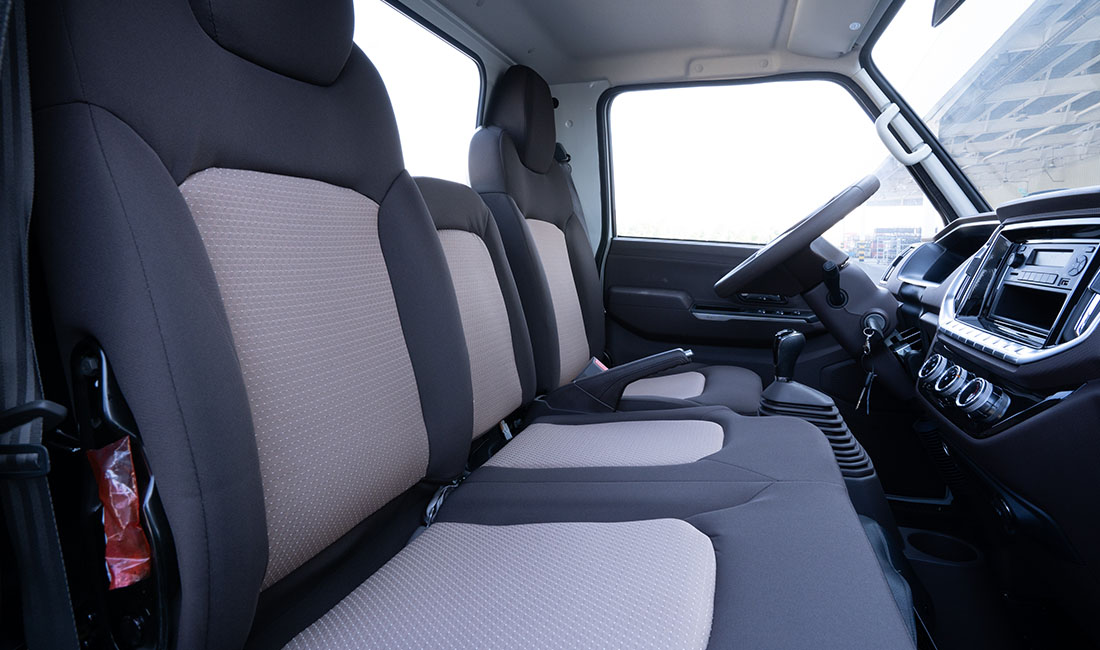

Seat Capacity
|
2
|
5
|
|
Air Conditioning
|
Optional
|
Standard
|
|

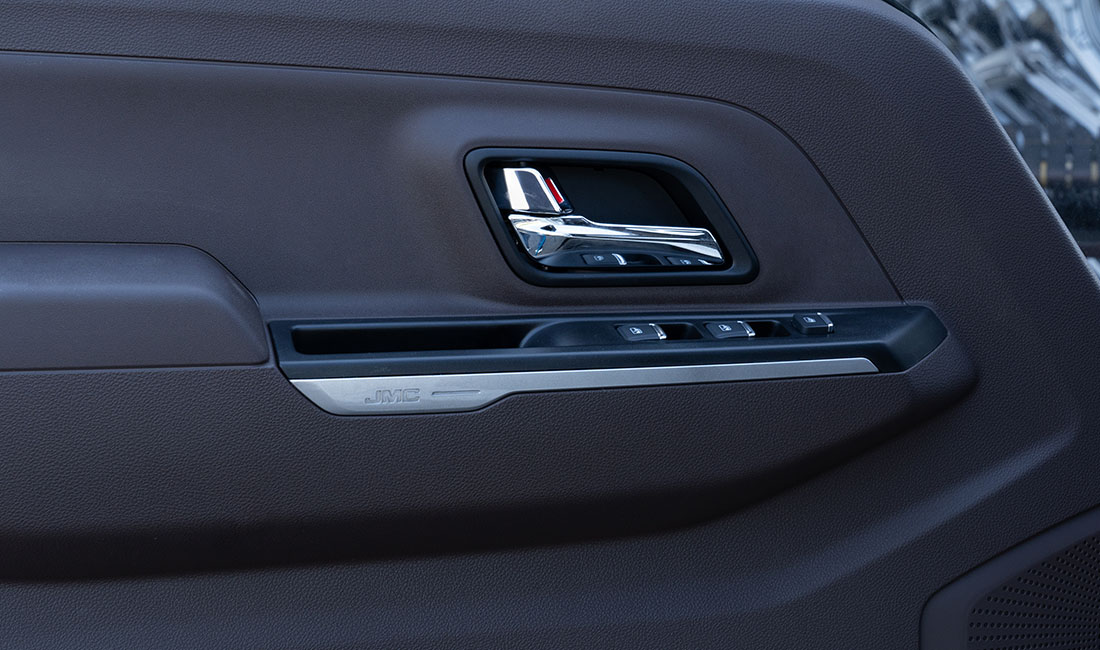

Windows
|
Manual
|
Power / Automatic
|
|
Central Locking
|
Manual
|
Automatic
|
|
Audio System
|
Radio & USB
|
Radio & USB key w/ remote
|
|
Brakes [Service / Parking]
|
Hydraulic / Mechanical
|
Hydraulic / Mechanical
|
|
Suspension [Front & Rear]
|
Leaf spring and absorber
|
Leaf spring and absorber
|
|
Alternator
|
12V 80Amps
|
12V 80Amps
|
|
Tire Size
|
6.50R15
|
6.50R15
|
|
Number of Tires
|
4 + 1 spare
|
4 + 1 spare
|
|
Number of Studs
|
6
|
6
|
|
